GDS Audio Amplified Speaker with PTT Breakout Feature Ram Mounts RAM-SPEAK-A02
74,00 € Iva Inclusa
RM6248
Disponibile su ordinazione
DESCRIZIONE IN INGLESE:

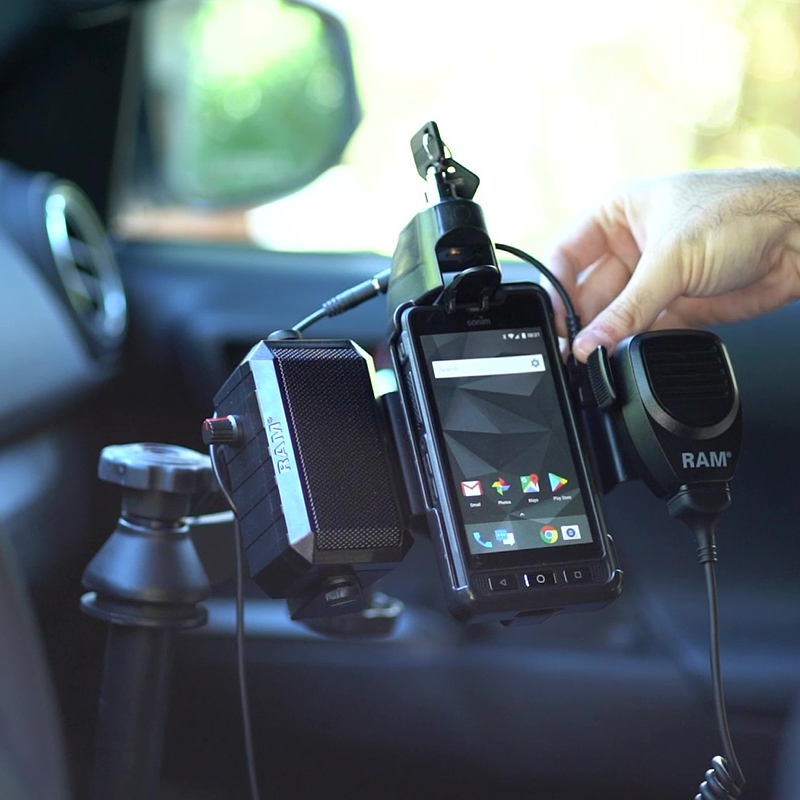

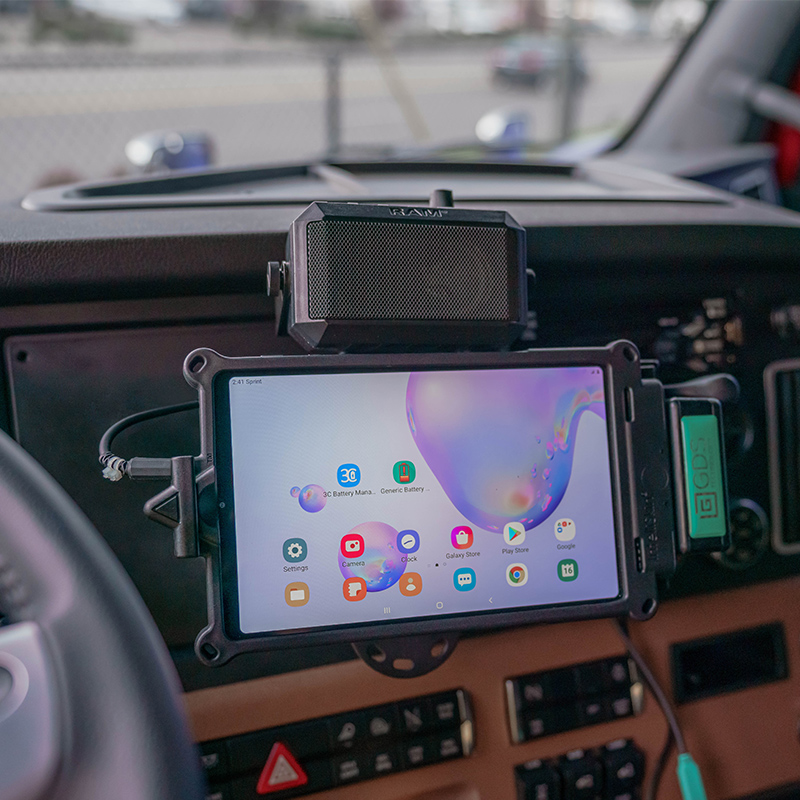

The GDS Audio amplified audio breakout and speaker can be hardwired into the cab of your vehicle with no batteries required for power. The audio breakout feature also allows for the inclusion of a PTT (push to talk) microphone (not included) or headset (not included) to enable half or full duplex conversation depending on the device and call solution being used. An adjustable knob allows for up to 99dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS Ecosystem, the speaker can be mounted to any GDS vehicle dock using the RAM short bracket adapter or RAM standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS vehicle dock.
The GDS Audio amplified audio breakout and speaker can be hardwired into the cab of your vehicle with no batteries required for power. The audio breakout feature also allows for the inclusion of a PTT (push to talk) microphone (not included) or headset (not included) to enable half or full duplex conversation depending on the device and call solution being used. An adjustable knob allows for up to 99dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS Ecosystem, the speaker can be mounted to any GDS vehicle dock using the RAM short bracket adapter or RAM standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS vehicle dock.
CODICE PRODOTTO: RAM-SPEAK-A02
LINEA PRODOTTO: GDS Audio GDS Tech
TIPO PRODOTTO: Components
SPECIFICHE PRODOTTO
– Product Weight: 0.94 lb
– Hardware Included: Mounting Bracket|(2) #8-32 x 5/8″ Machine Screws|(2) #8-32 Nylock Nuts
– Speaker Specifications: Independently adjustable volume knob|Max volume level: 99dB|8? / 10W rated speaker
– Packaging Type: Box
– Input Voltage: 9-26VDC
– Power Output: Peak Power: 10W|RMS Power: 8W
– Input Connector: 3.5mm TRRS connector, with a modified CTIA pin map for audio in/out
– Input Cable Length: 1150mm long red/black power cable
– Output Cable Length: 150mm long audio cable with 3.5mm mono plug jack
– Operating Temperature: -20?C to +80?C
– Storage Temperature: -40?C to +85?C
– Regulatory: Over current protection, short circuit protection and over volatage protection
– Certifications: FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
– Product Weight: 0.94 lb
– Hardware Included: Mounting Bracket|(2) #8-32 x 5/8″ Machine Screws|(2) #8-32 Nylock Nuts
– Speaker Specifications: Independently adjustable volume knob|Max volume level: 99dB|8? / 10W rated speaker
– Packaging Type: Box
– Input Voltage: 9-26VDC
– Power Output: Peak Power: 10W|RMS Power: 8W
– Input Connector: 3.5mm TRRS connector, with a modified CTIA pin map for audio in/out
– Input Cable Length: 1150mm long red/black power cable
– Output Cable Length: 150mm long audio cable with 3.5mm mono plug jack
– Operating Temperature: -20?C to +80?C
– Storage Temperature: -40?C to +85?C
– Regulatory: Over current protection, short circuit protection and over volatage protection
– Certifications: FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
CARATTERISTICHE PRODOTTO
– PTT-enabled amplification speaker with independent adjustable volume knob

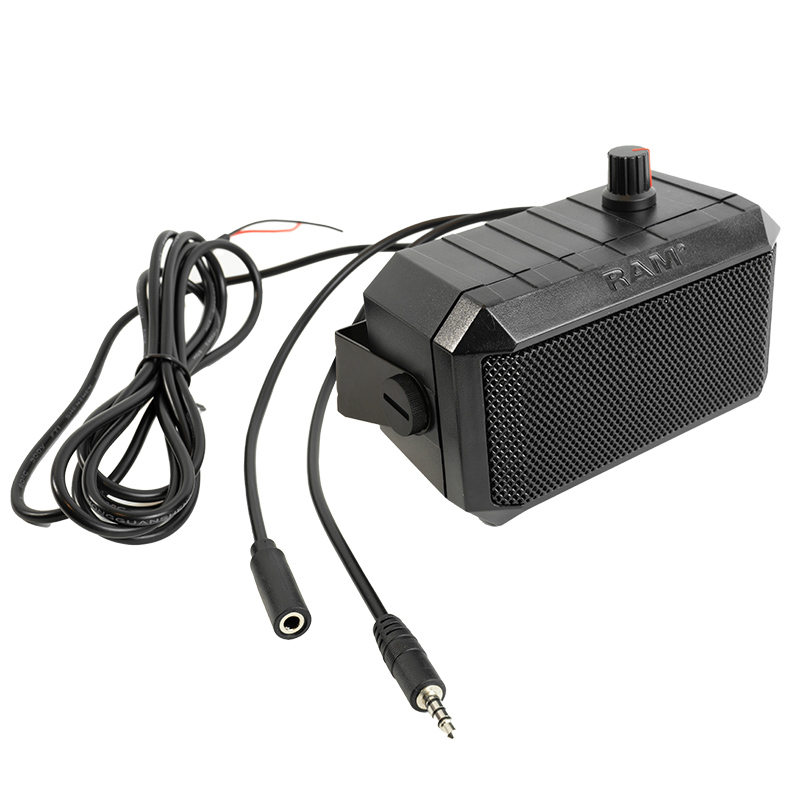

– Includes hardwire power input cable, audio input cable and audio output cable
– 99db max volume level
– Backed by a 3-year warranty
– PTT-enabled amplification speaker with independent adjustable volume knob
– Includes hardwire power input cable, audio input cable and audio output cable
– 99db max volume level
– Backed by a 3-year warranty
| Tipo Prodotto | Componente singolo |
|---|---|
| Linea Prodotto | GDS Tech |
