RAM® Double Ball Yoke Clamp Mount with Garmin Mounting Hardware Ram Mounts RAM-B-121-G1U
67,00 € Iva Inclusa
RM1688
5 disponibili (ordinabile)

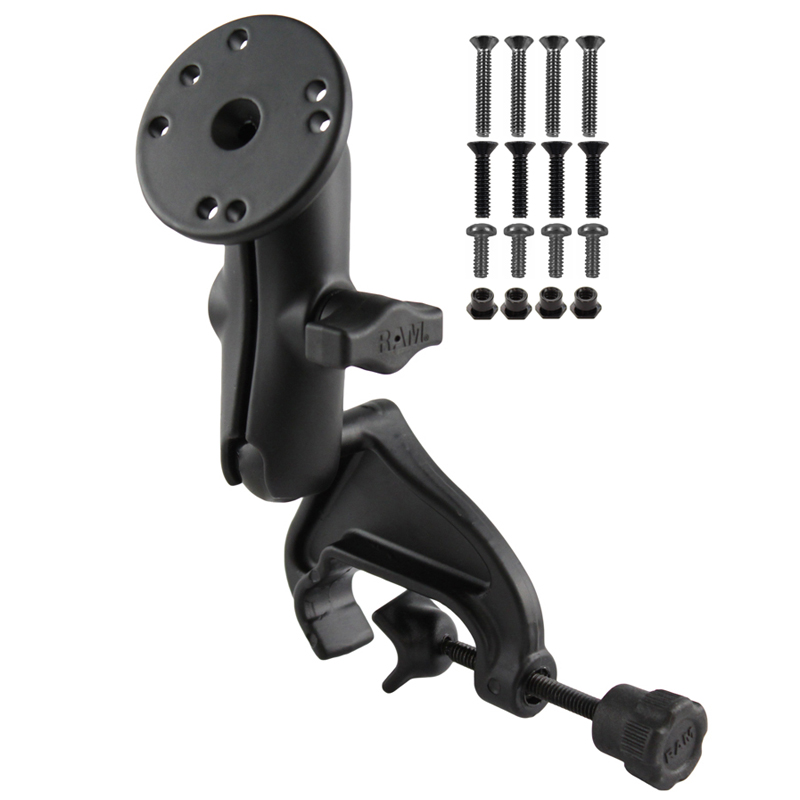

The RAM yoke mount consists of the 1″ dia. ball and socket system with RAM Universal 2.5″ diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5″ Plate will connect to a large variety of third party cradles and mounts. The base fits a rail diameter from 5/8″ to a maximum of 1 1/4″. The 1″ rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails. The rail does not need to be perfectly round to mount this base.
CODICE PRODOTTO: RAM-B-121-G1U
TIPO PRODOTTO: Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin GPSMAP 172-250
– Garmin StreetPilot III
– Garmin GPSMAP 172-250
– Garmin StreetPilot III
SPECIFICHE PRODOTTO
– Product Weight: 0.74 lb
– Hardware Included: (4) #6-32 x 5/8″ Machine Screws|(4) #6-32 x 7/8″ Machine Screws|(4) #6-32 x 3/8″ Machine Screws|(4) #6-32 Nut Inserts
– Clamp Range: .625″ – 1.25″
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Diameter Range: .625″ – 1.25″
– Device or Accessory Type: GPS
– Vehicle Type: Aircraft
– Product Weight: 0.74 lb
– Hardware Included: (4) #6-32 x 5/8″ Machine Screws|(4) #6-32 x 7/8″ Machine Screws|(4) #6-32 x 3/8″ Machine Screws|(4) #6-32 Nut Inserts
– Clamp Range: .625″ – 1.25″
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Diameter Range: .625″ – 1.25″
– Device or Accessory Type: GPS
– Vehicle Type: Aircraft
