RAM Glare Shield Clamp Double Ball Mount with Round Plate Ram Mounts RAM-B-177-202U
63,00 € Iva Inclusa
RM3938
Disponibile su ordinazione
DESCRIZIONE IN INGLESE:

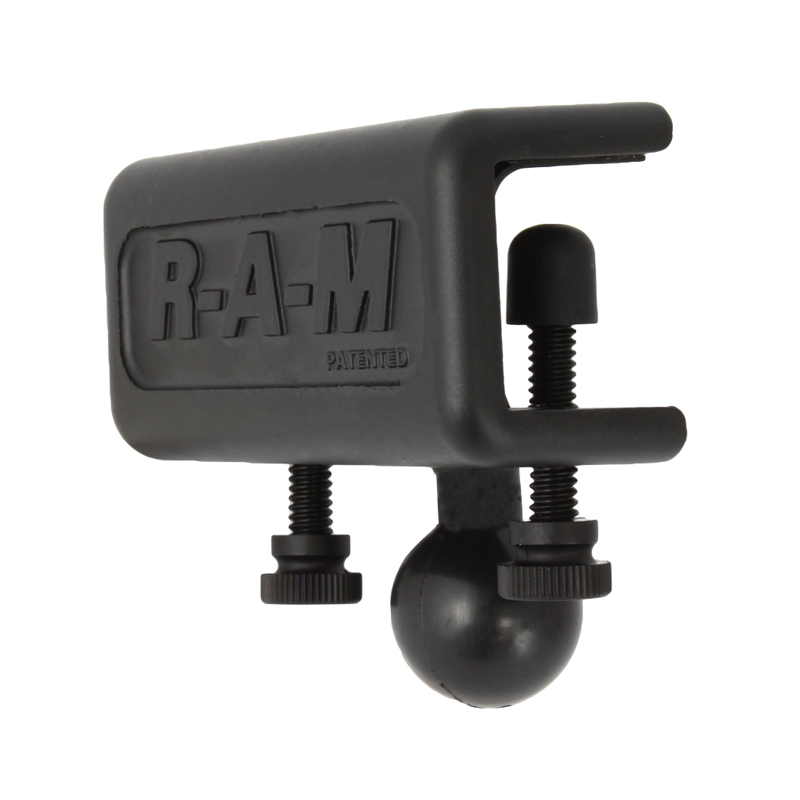

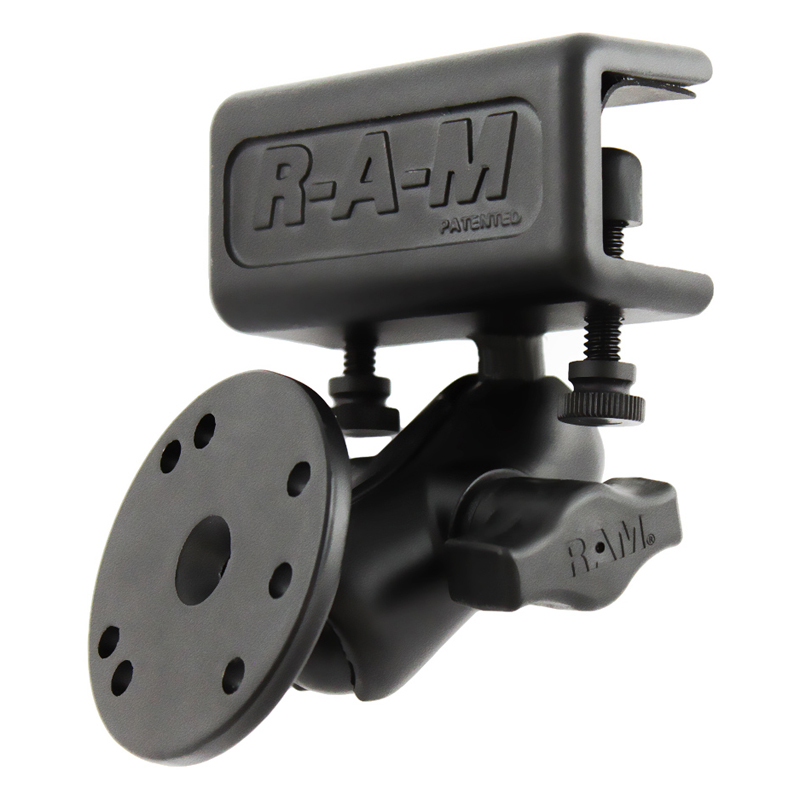

The RAM-B-177-202U consists of a glare shield clamp base, short double socket arm and round base that contains the universal AMPs hole pattern. This mount is designed to mount to the lip edge of a flat surface up to 5/8″ thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1″ diameter rubber ball is connected to the base allowing you to connect a RAM 1″ diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The RAM-B-177-202U consists of a glare shield clamp base, short double socket arm and round base that contains the universal AMPs hole pattern. This mount is designed to mount to the lip edge of a flat surface up to 5/8″ thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1″ diameter rubber ball is connected to the base allowing you to connect a RAM 1″ diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-177-202U
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.65 lb
– Hardware Included: (2) 1/4″-20 x 1.25″ Composite Thumb Screws|(2) Rubber Caps|(1) 1.93″ x 3.06″ Rubber Adhesive Pad
– Clamp Range: .625″ max
– Socket To Socket Length: 1.75″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 0.65 lb
– Hardware Included: (2) 1/4″-20 x 1.25″ Composite Thumb Screws|(2) Rubber Caps|(1) 1.93″ x 3.06″ Rubber Adhesive Pad
– Clamp Range: .625″ max
– Socket To Socket Length: 1.75″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Tipo Prodotto | Supporto Completo |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
