RAM® Double U-Bolt Rail Mount for Larger Rails Ram Mounts RAM-101U-235-1

74,00  Iva Inclusa

RM1027

1 disponibili

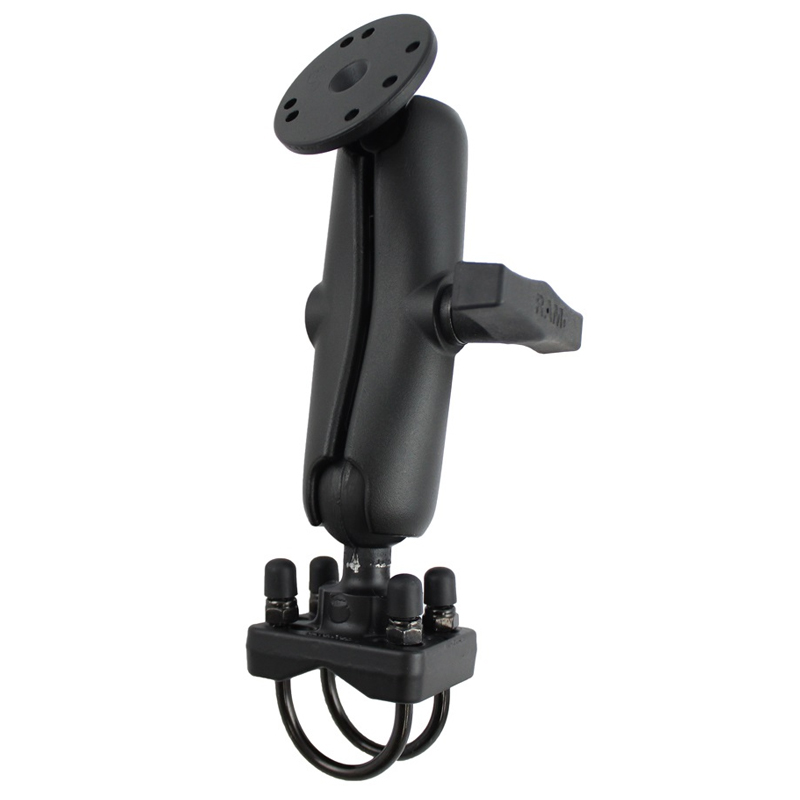

The RAM-101U-235-1 consists of a double socket arm, one round 2.5″ diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1.25″ to 1.5″ in diameter. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

CODICE PRODOTTO: RAM-101U-235-1

TIPO PRODOTTO: Mounts

SPECIFICHE PRODOTTO
– Product Weight: 1.46 lb
– Hardware Included: (2) 1/4″-20 U-Bolts for 1.25″ – 1.5″ Rails|(4) 1/4″-20 Nylock Nuts|(4) Rubber Caps
– Clamp Range: 1.25″ – 1.5″ diameter
– Socket-to-Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Diameter Range: 1.25″ – 1.5″
– Vehicle Type: ATV
– Vehicle Type: UTV
CARATTERISTICHE PRODOTTO
– 2.5″ round plate connects to RAM® device holders containing the universal AMPS hole pattern
– Includes double U-bolt base that accommodates rails from 1.25″ to 1.5″ in diameter and a medium length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
– Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
– Backed by a lifetime warranty
