Supporto Ram Mounts RAM-B-202-379-M616U a superficie liscia per Raymarine Dragonfly
42,00 € Iva Inclusa
RM5078
10 disponibili (ordinabile)

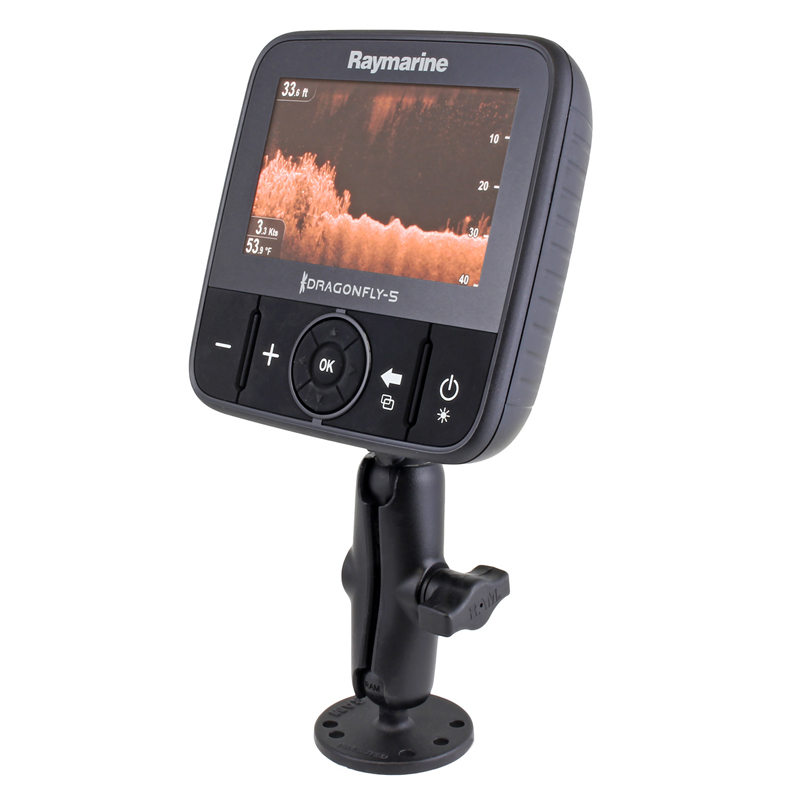

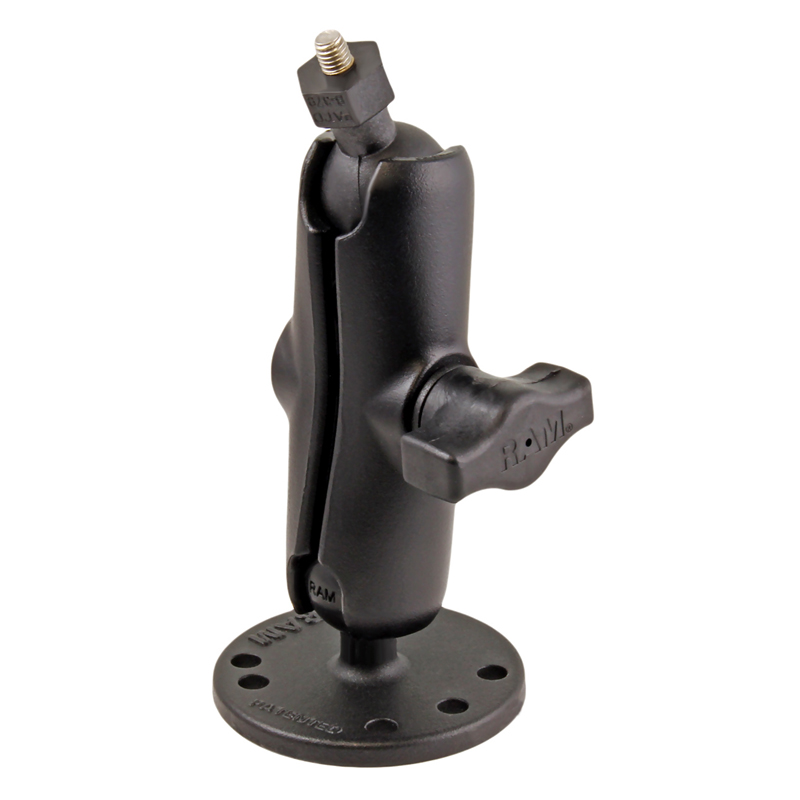

Supporto nautico Ram Mounts RAM-B-202-379-M616U con base piana e rotonda da 2,5″ di diametro con schema di fori AMPS universale, braccio a doppia presa medio e sfera da 1″ di diametro, contenente un attacco a vite esagonale M6 x 30 SS. compatibile con tutta la serie di ecoscandaglio Raymarine Dragonfly e molto altri modelli (vedi descrizione) il supporto è costituito da una sfera di diametro 1 “pari a 2,54cm (tipo B)
Il RAM-B-202-379-M616 riduce l’ingombro di montaggio, rispetto alle vecchie unità dragonfly che contengono un braccio grande.
CODICE PRODOTTO: RAM-B-202-379-M616U
LINEA PRODOTTO: Tough-Ball
TIPO PRODOTTO: Mounts
– Raymarine Dragonfly-4 DV
– Raymarine Dragonfly-4 DVS
– Raymarine Dragonfly-4 PRO
– Raymarine Dragonfly-5 DVS
– Raymarine Dragonfly-5 M
– Raymarine Dragonfly-5 Pro
– Raymarine Dragonfly-7 PRO
– Raymarine WiFish
– Product Weight: 0.48 lb
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Plate Size: 2.5″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Thread Pitch: M6-1
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
– Vehicle Type: Power Boat
– Vehicle Type: Kayak
DESCRIZIONE IN INGLESE

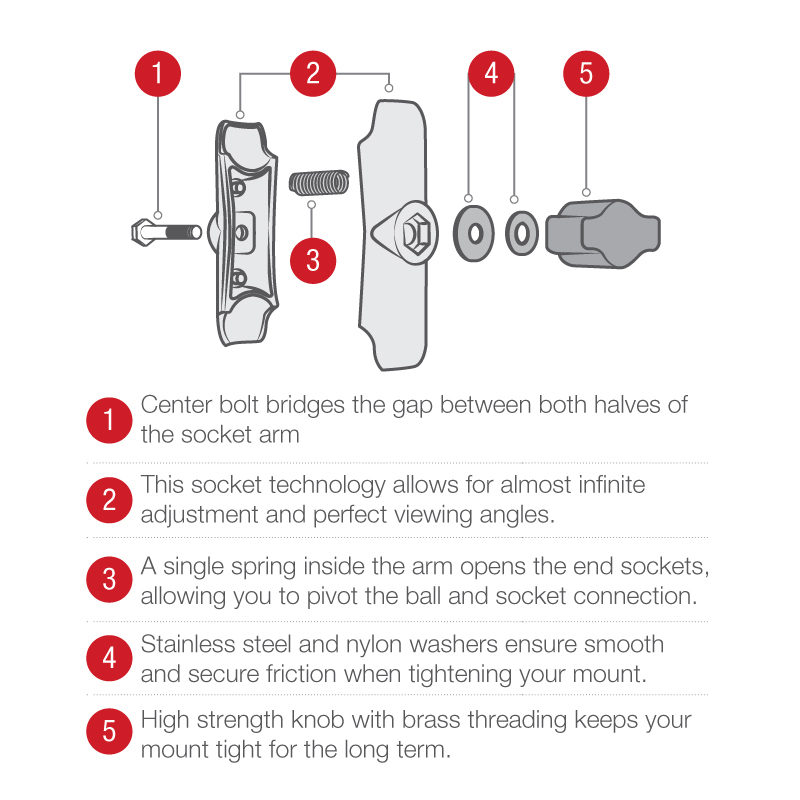

The RAM-B-202-379-M616U consists of a 2.5″ diameter round base with the universal AMPS hole pattern, STANDARD size double socket arm and 1″ diameter ball, containing a M6 x 30 SS HEX head bolt. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-202-379-M616 reduces the mounting footprint, compared to old dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM components into your Raymarine system, opening up the ball and socket system and all of our mounting options to you.
| Device | Ecoscandaglio |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
