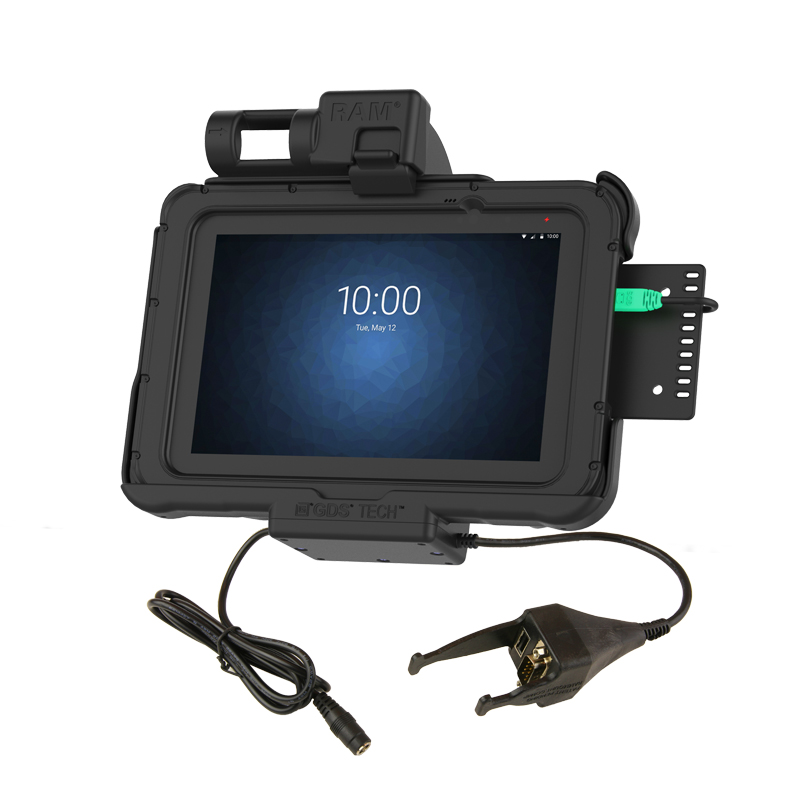

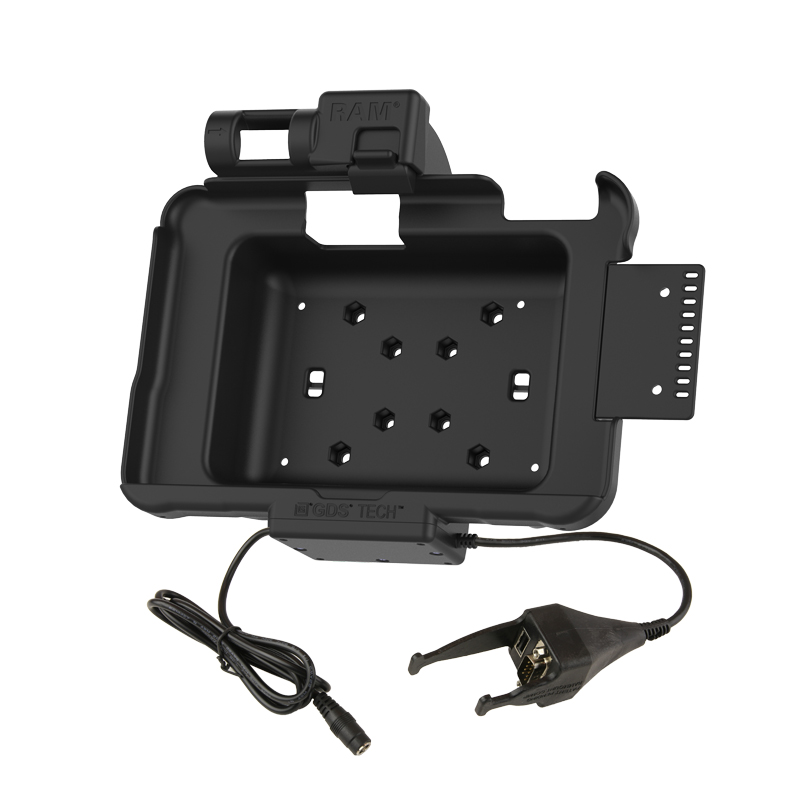

GDS Power + Data & DB9 Dock for Zebra ET5x 8.3″ & 8.4″ Series Ram Mounts RAM-HOL-ZE10PD-DB9U

244,00  Iva Inclusa

RM10916

Disponibile su ordinazione

DESCRIZIONE IN INGLESE:
Featuring GDS Technology for data and charging capabilities, the GDS Vehicle Dock for Zebra ET5x 8.3″ & 8.4″ series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock’s 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable and DB9 male connector. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, keyboard, mouse, joystick and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system.

CODICE PRODOTTO: RAM-HOL-ZE10PD-DB9U

LINEA PRODOTTO: GDS Tech

TIPO PRODOTTO: Components

QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Zebra ET50 8.3″ with rugged frame
– Zebra ET51 8.4″ with rugged frame
– Zebra ET55 8.3″ with rugged frame
– Zebra ET56 8.4″ with rugged frame
SPECIFICHE PRODOTTO
– Product Weight: 1.39 lb
– Hardware Included: (1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8? Machine Screws|(2) #8-32 x 1/2? Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8? Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB Type A Cable Clamp Housing
– Hole Pattern: 75 x 75mm VESA|4-Hole AMPS: 1.181″ x 1.496″
– Materials: High strength composite
– Packaging Type: Poly Bag
– Input Connector: 5.5mm DC Connector
– Output Connector: USB 2.0 Type A|DB9 Male
– Transfer Speed: 12Mbps
CARATTERISTICHE PRODOTTO
– Spring-loaded powered dock featuring GDS Technology for data and charging capabilities for the Zebra ET5x 8.3″ & 8.4″ series tablets with Rugged Frame via DC 5.5mm power jack, USB Type A for adding a peripheral, and DB9 male connector
– When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, keyboards, mice, joysticks and PowerPack battery; tablet scanning works while tablet is docked

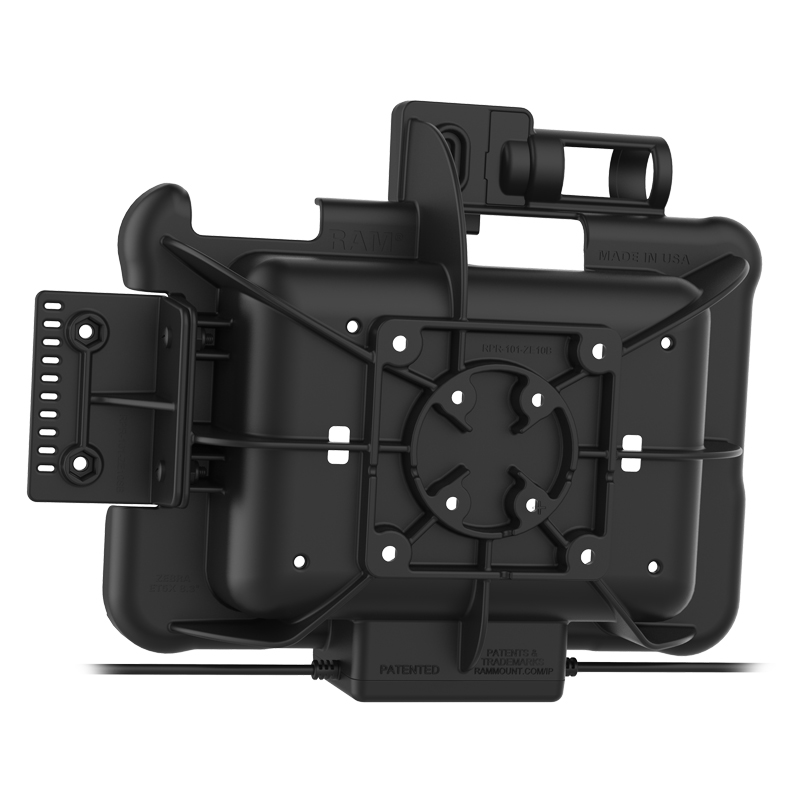

– Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
– Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket
– Backed by a 3-year warranty
Tipo Prodotto

Mascherina Holder

Marca

Zebra

Device

Tablet

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442024672 COD: RAM-HOL-ZE10PD-DB9U Categoria:
