Sistema di montaggio con base piana Ram Mounts RAM-B-138U-A con braccio corto
41,86 € Iva Inclusa
RM1923
300 disponibili (ordinabile)
Sistema di montaggio Ram Mounts RAM-B-138U-A per superfici piane per ogni veicolo, in particolare, carrello elevatore, barche, cruscotto auto. Con braccio medio e attacco sfera di tipo “B” da 1 pollice pari a 2,54cm.
Con attacco fori AMPS, questa staffa รจ compatibile con tutti i CRADLE o mascherine Ram Mounts
Il braccio รจ quello corto da 6cm ed รจ utilizzata per supportare monitor, gps o componenti fino a 800 grammi circa anche in presenza di forti vibrazioni, questo grazie alle sfere in gomma
Se avete bisogno di fissare un dispositivo con peso fino a 0,8kg (ad esempio dei monitor nelle macchine agricole, gru, carrelli elevatori, autoclavi, macchine agricole trattori, cingolati, aereoplani, elicotteri), con questa staffa robustissimo risolverete il problema
Il prodotto si presenta interamente in acciaio verniciato con speciali vernici con sistema nautico quindi resistenti ed indelebili.
CODICE PRODOTTO: RAM-B-138U-A
TIPO PRODOTTO: Mounts
– Product Weight: 0.4 lb
– Product Dimensions: Overall Height: 3.75″
– Socket-to-Socket Length: 1.75″
– Hole Pattern: Diamond Plate: 2-Hole AMPS: 1.912″|Round Plate: 4-Hole AMPS: 1.181″ x 1.496″ & 3-Hole 120-Degree: 1.812″ Diameter
– Plate Size: Round Plate: 2.5″ Diameter|Diamond Plate: 2.43″ x 1.31″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Short Arm
– Drill-down mounting solution; diamond plate features AMPS hole pattern for attachment to compatible device holders
– Includes round ball base, diamond ball base, and B size short length double socket arm; ball and socket technology allows for near-infinite adjustability
– Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
– Backed by a lifetime warranty
DESCRIZIONE INGLESE

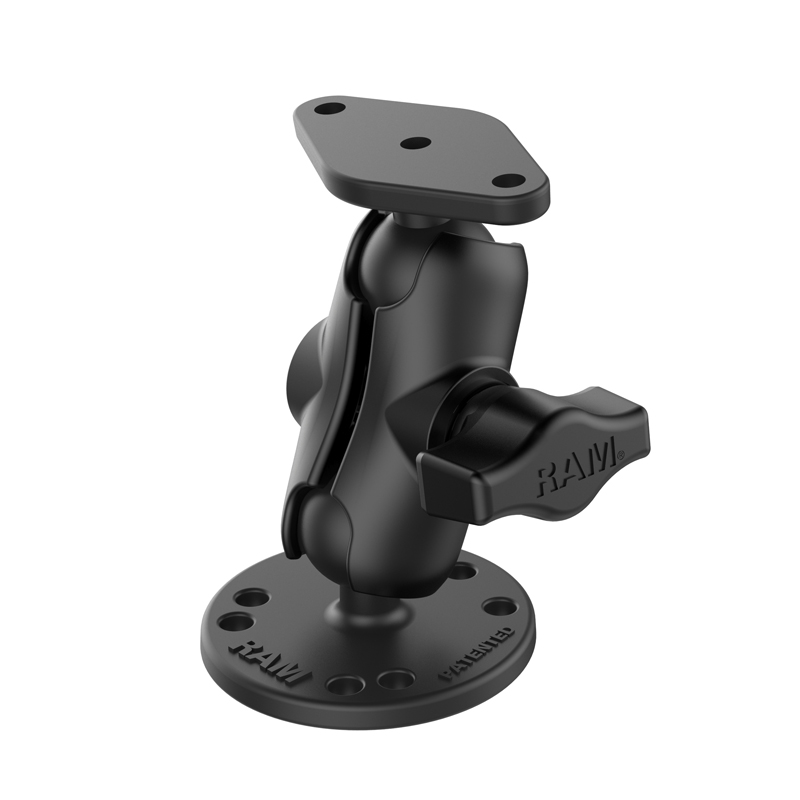

The RAM-B-138U-A consists of a 2.5″ diameter round base that contains the universal AMPs hole pattern, SHORT double socket arm and diamond base adapter. The mount is designed with a 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
Questo articolo รจ disponibile anche in: English (Inglese)
Veicolo | Barca |
---|---|
Tipo Sfera | B – 2.54cm (0.90kg) |
