RAM Supporto per bullone a U cromato per manubrio con braccio corto a doppia presa Ram Mounts RAM-B-149ACH-LO4
141,24 € Iva Inclusa
RM2015
1 disponibili (ordinabile)

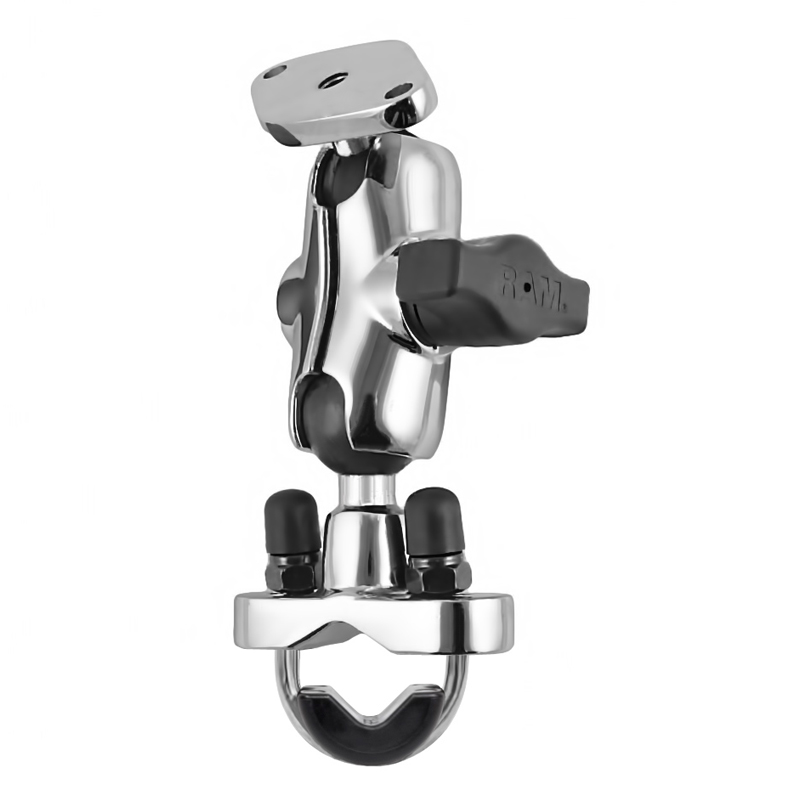

Il RAM-B-149ACH-LO4 è costituito da una base con bullone a U in acciaio inossidabile, un doppio braccio a bussola SHORT CHROME e una base adattatore romboidale. La base dell’adattatore diamantato ha uno schema di fori che corrisponde allo schema di fori AMPS standard del settore e si collega a un’ampia varietà di supporti RAM e culle di terze parti. Il supporto è progettato con un sistema brevettato di sfere e prese in gomma RAM da 1″ (pari a 2,54cm) di diametro che ha punti di regolazione su entrambe le estremità del braccio a doppia bussola; Ciò consente una regolazione quasi infinita e angoli di visione perfetti.
DESCRIZIONE IN INGLESE:
The RAM-B-149ACH-LO4 consists of a stainless steel u-bolt base, SHORT CHROME double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed con a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The RAM-B-149ACH-LO4 consists of a stainless steel u-bolt base, SHORT CHROME double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed con a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-149ACH-LO4
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.58 lb
– Hardware Included: (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1″ diameter
– Socket To Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Product Weight: 0.58 lb
– Hardware Included: (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1″ diameter
– Socket To Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
| Veicolo | Moto |
|---|---|
| Marca | Lowrance |
| Tipo Sfera | B – 2.54cm (0.90kg) |
