Powered Mount for Samsung Tab Active4 Pro and Active5 Pro with Backing Plate Ram Mounts RAM-101-B-SAM52P-V7B1U
209,00 € Iva Inclusa
RM5021
1 disponibili (ordinabile)

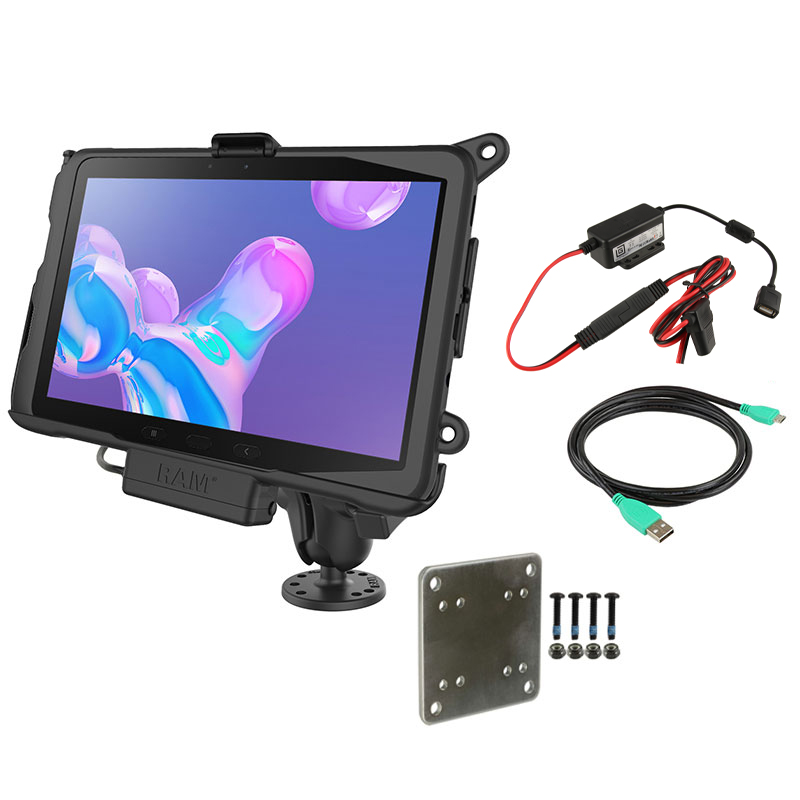

This Samsung Tab Active Pro kit (light duty) includes everything you need to keep the device powered and secure. It includes the RAM EZ-Roll’r powered cradle, C size double ball mount with two round plates and short double socket arm, backing plate adapter, GDS modular hardwire charger, GDS USB 2.0 cable, and cable clamp. The RAM EZ-Roll’r powered cradle for the Samsung Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM Skin for the Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM Skin while utilizing the GDS Hand-Stand or GDS shoulder strap. While keeping the Tab Active Pro secure, the RAM EZ-Roll’r powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM round ball bases. Includes a mUSB female pigtail for power.
CODICE PRODOTTO: RAM-101-B-SAM52P-V7B1U
LINEA PRODOTTO: EZ-Roll”r
TIPO PRODOTTO: Mounts with Holder
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Samsung Galaxy Tab Active Pro
– Samsung Galaxy Tab Active4 Pro
– Samsung Galaxy Tab Active5 Pro
– Samsung Galaxy Tab Active4 Pro
– Samsung Galaxy Tab Active5 Pro
SPECIFICHE PRODOTTO
– Product Weight: 2.25 lb
– Hardware Included: (1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Steel|Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
– Input Voltage: 10V – 30V DC
– Output Voltage: 5-9VDC
– Output Current: 2.5A max
– Input Connector: mUSB 2.0
– Input Cable Length: 1.2 Meter
– Operating Temperature: -10°C to +70°C
– Storage Temperature: -40°C to +70°C
– Compliance: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
– Certifications: CE Certification|e-Mark Certification|RCM Certification|FCC Certification
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Short Arm
– Device or Accessory Type: Tablet
– Vehicle Type: Car & Truck
– Product Weight: 2.25 lb
– Hardware Included: (1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Steel|Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
– Input Voltage: 10V – 30V DC
– Output Voltage: 5-9VDC
– Output Current: 2.5A max
– Input Connector: mUSB 2.0
– Input Cable Length: 1.2 Meter
– Operating Temperature: -10°C to +70°C
– Storage Temperature: -40°C to +70°C
– Compliance: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
– Certifications: CE Certification|e-Mark Certification|RCM Certification|FCC Certification
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Short Arm
– Device or Accessory Type: Tablet
– Vehicle Type: Car & Truck
CARATTERISTICHE PRODOTTO
– Kit includes RAM® EZ-Roll’r™ powered cradle for Tab Active Pro, C size double ball mount with round plates, backing plate adapter, and charger
– Powered cradle provides charging capabilities for Tab Active Pro through integrated pogo pin connector; can be used in portrait or landscape mode
– Access to speakers, mics, headphone jack, and NFC reader remain while device is docked
– Compatible with factory skin and RAM® Skin™
– Backed by a 3-year warranty
– Kit includes RAM® EZ-Roll’r™ powered cradle for Tab Active Pro, C size double ball mount with round plates, backing plate adapter, and charger
– Powered cradle provides charging capabilities for Tab Active Pro through integrated pogo pin connector; can be used in portrait or landscape mode
– Access to speakers, mics, headphone jack, and NFC reader remain while device is docked
– Compatible with factory skin and RAM® Skin™
– Backed by a 3-year warranty
| Tipo Prodotto | Supporto con Holder |
|---|---|
| Linea Prodotto | Holder con rotellina |
| Marca | Samsung |
| Device | Tablet |
| Tipo Sfera | C – 3.81cm (1.8kg) |
