RAM® Strap Hose Clamp Ball Base Ram Mounts RAM-B-108BU-HUM1
23,00 € Iva Inclusa
RM1646
Disponibile su ordinazione

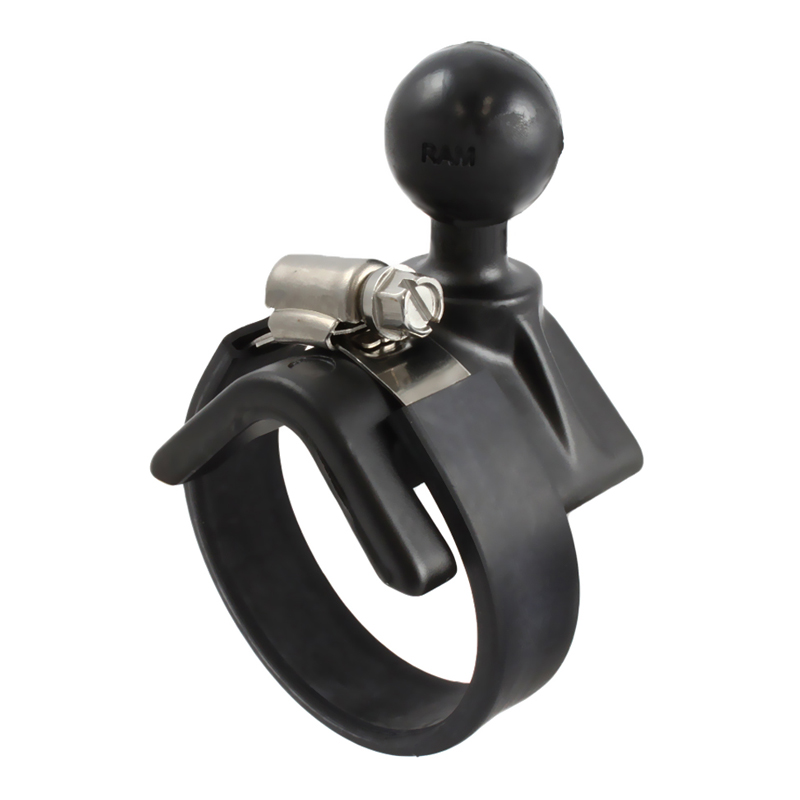

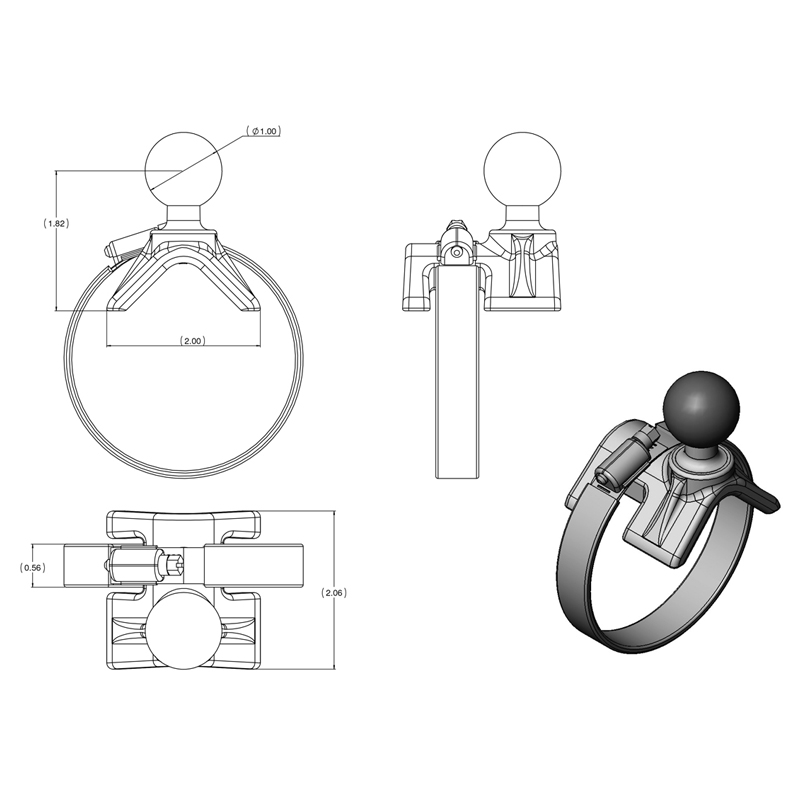

The RAM-B-108BU-HUM1 consists of a 1″ diameter rubber ball connected at a right angle to a v-shaped base. The RAM-B-108BU-HUM1 accommodates rails from 1.0″ to a maximum of 2.1″ in diameter. To mount the RAM-B-108BU-HUM1 base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108BU-HUM1 is an alternative mounting base for Beechcraft airplanes with a “throw over yoke”.
CODICE PRODOTTO: RAM-B-108BU-HUM1
TIPO PRODOTTO: Components
SPECIFICHE PRODOTTO
– Product Weight: 0.28 lb
– Hardware Included: (1) #28 Worm Drive Strap Clamp|(1) 6″ Rubber Strip
– Clamp Range: 1.5″ – 2.1″ diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Diameter Range: 1″ – 2.1″
– Product Weight: 0.28 lb
– Hardware Included: (1) #28 Worm Drive Strap Clamp|(1) 6″ Rubber Strip
– Clamp Range: 1.5″ – 2.1″ diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Diameter Range: 1″ – 2.1″
| Tipo Prodotto | Componente singolo |
|---|
