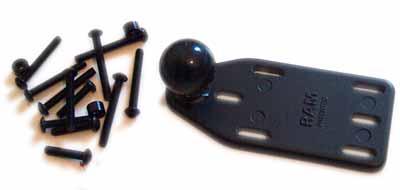

Componente attacco moto Ram Mounts RAM-B-346U per vaschetta oliera

30,00  Iva Inclusa

RM59

38 disponibili (ordinabile)

Attacco a piastra con fori adatta a fissare il kit ram-mount per esempio su vaschetta oliera situata sul manubrio di motoveicoli.
Con attacco a sfera laterale, il kit ram-mount può essere orientato sia verticalmente che orizzaontalmente
Particolarmente adatto per moto BMW.

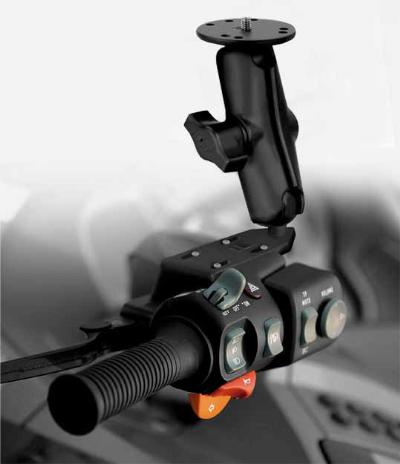

L’attacco si fissa avvitando lo stesso sulla vaschetta dell’olio e sfruttando gli stessi fori delle viti dell’oliera.
Il prodotto si presenta interamente in metallo verniciato con speciali vernici per imbarcazioni quindi resistente ed indelebile.

MISURE:

lunghezza 10cm
larghezza 4,5cm
distanza fori orizzontali 6cm max 3cm min
distanza fori centrali 7cm max 5cm min
distanza fori verticali 3,5cm



COMPATIBILE CON LE MOTO:

AnnoMarcaModello
2002 – 2007BMW K1200GT

TuttiBMW K1200LT
1998 – 2005 BMW K1200RS
TuttiBMW R1100S
TuttiBMW R1150GS
TuttiBMW R1150RS
TuttiBMW R1150RT
TuttiBMW R1200C
TuttiBMW R1200CL
TuttiBMW R1200RT
TuttiHonda CBR 600 F4i
TuttiHonda Interceptor VFR800
TuttiHonda ST1300
TuttiKawasaki Ninja 500R
TuttiKawasaki Ninja 650R
TuttiKawasaki Vulcan VN1600
TuttiKawasaki Vulcan VN2000
TuttiKawasaki Z750S
TuttiSuzuki Boulevard VL Series
TuttiSuzuki Burgman 400/650
TuttiSuzuki GSX-R 600
TuttiSuzuki GZ250
TuttiSuzuki Hyabusa
TuttiSuzuki Katana 600
TuttiSuzuki SV650
TuttiSuzuki V-Strom
TuttiYamaha FJR1300
TuttiYamaha FZ1
TuttiYamaha FZ4

CARATTERISTICHE E DETTAGLI TECNICI
Scarica in formato pdf le misure e le caratteristiche tecniche del prodotto (attenzione le misure sono in pollici)

CODICE PRODOTTO: RAM-B-346U

TIPO PRODOTTO: Components

SPECIFICHE PRODOTTO
– Product Weight: 0.253 lb

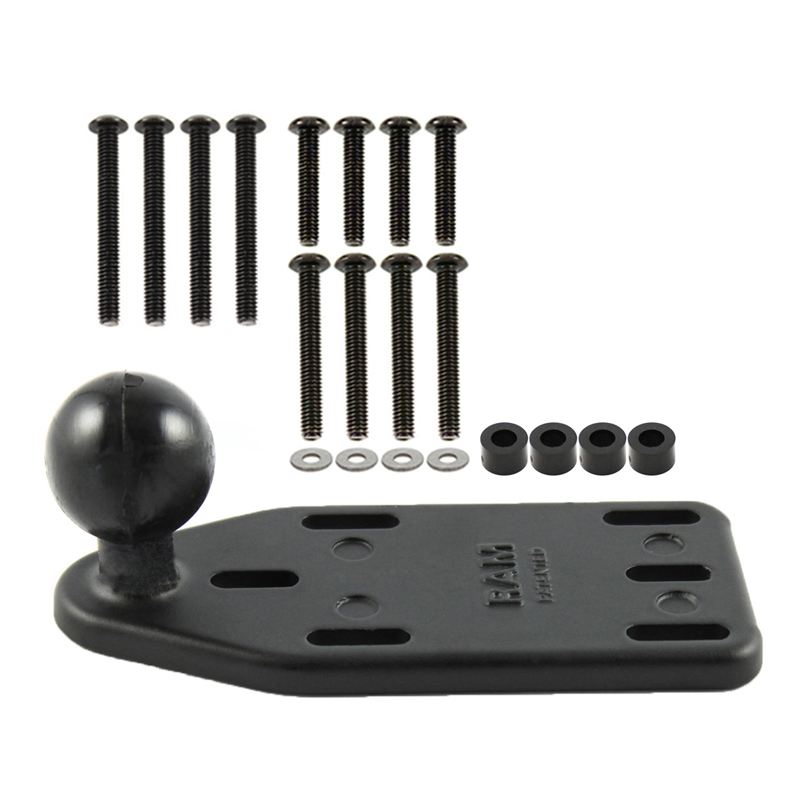

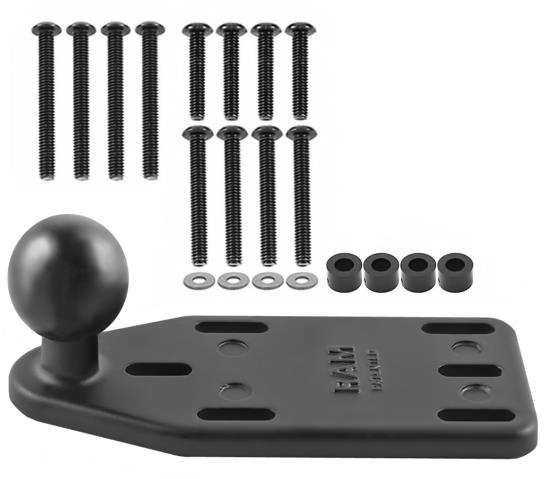

– Hardware Included: (4) M4 x 20mm Machine Screws|(4) M4 x 30mm Machine Screws|(4) M4 x 35mm Machine Screws|(4) M4 Flat Washers|(4) .188″ Nylon Spacers
– Hole Pattern: See Drawing
– Plate Size: See Drawing
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Brake/Clutch Reservoir
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Vehicle Type: Motorcycle
CARATTERISTICHE PRODOTTO
– Fits over your motorcycle’s existing brake/clutch reservoir cover; includes set of M4 x 35, M4 x 30, and M4 x 20 screws
– Included B size 1″ RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
– Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
– Backed by a lifetime warranty
DESCRIZIONE INGLESE
The RAM-B-346U base fits cleanly over your existing brake/clutch reservoir cover with the B size 1″ rubber ball offset. Made of die cast aluminum with an overmolded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate that mounts above the cover using the screw holes and longer screws of the cover. The kit includes three sets of screws of differing lengths. The center two slots are 2 7/16″ center to center and are just under a .5″ long. This mount is not compatible with the 2016 BMW R1200RT.

Questo articolo è disponibile anche in: English (Inglese)

Tipo Prodotto

Componente singolo

Tipo Sfera

B – 2.54cm (0.90kg)

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442907760 COD: RAM-B-346U Categorie: ,
