RAM® Track Ball™ Marine Electronic Mount Ram Mounts RAM-111B-354-TRA1
81,00 € Iva Inclusa
RM5058
3 disponibili (ordinabile)

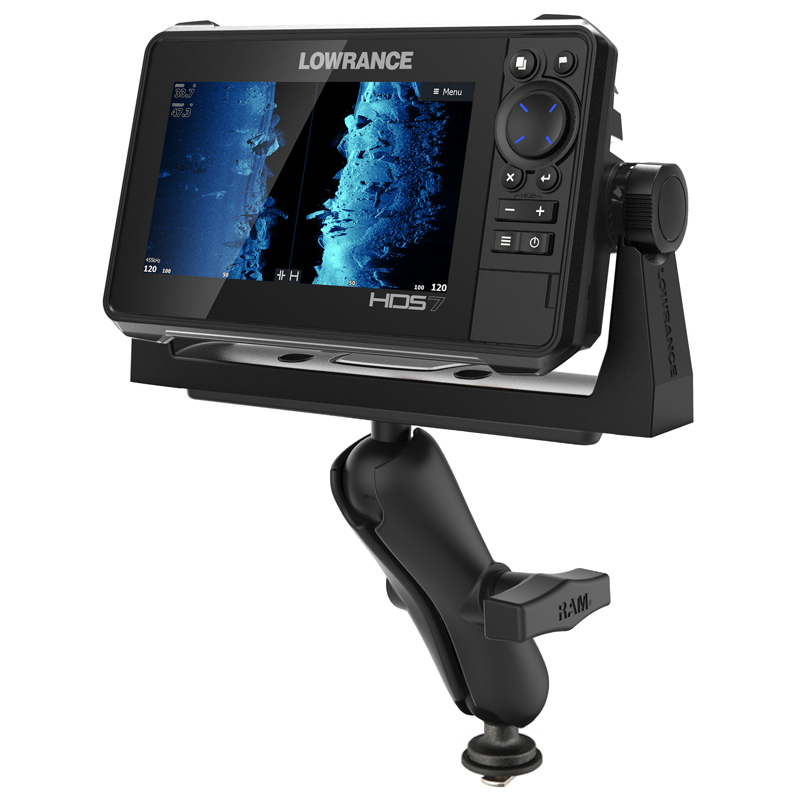

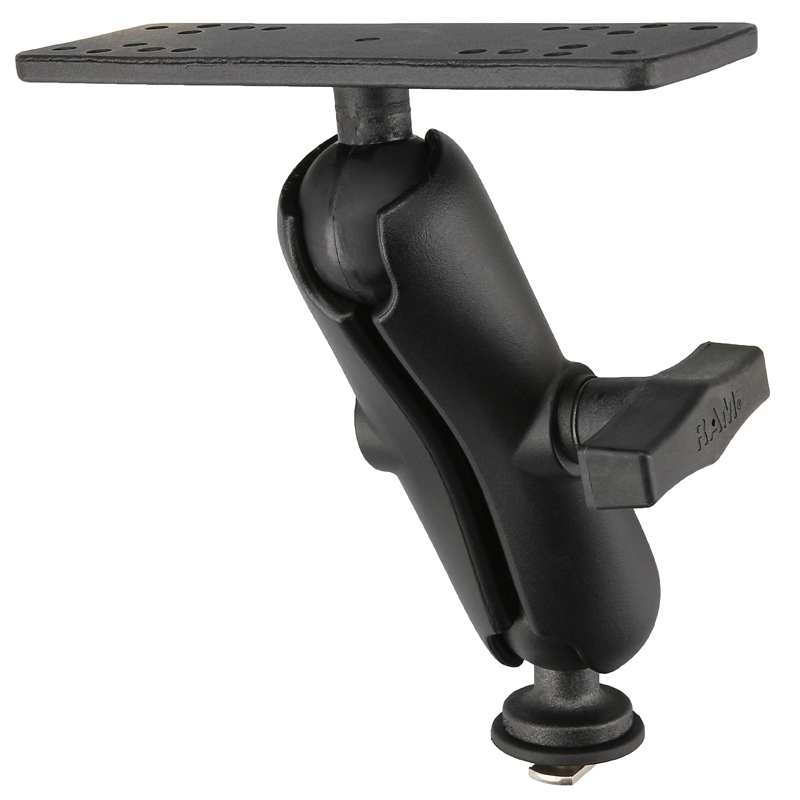

The RAM-111B-354-TRA1 consists of a Track Ball base that can attach to any track system including the RAM Tough-Track. Connected to the base is a standard length double socket arm and 6.25″ x 2″ rectangle plate for supporting a wide range of fishfinders and chartplotters. The rectangular plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
CODICE PRODOTTO: RAM-111B-354-TRA1
TIPO PRODOTTO: Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin ECHOMAP Plus 72cv
– Garmin ECHOMAP Plus 73cv
– Garmin ECHOMAP Plus 74cv
– Garmin ECHOMAP Plus 75cv
– Garmin ECHOMAP Plus 77cv
– Garmin GPSMAP 722
– Garmin GPSMAP 722xs
– Garmin GPSMAP 723
– Garmin GPSMAP 723xsv
– Garmin GPSMAP 742
– Garmin GPSMAP 742xs
– Garmin GPSMAP 743
– Garmin GPSMAP 743xsv
– Garmin Striker Plus 5cv
– Garmin Striker Plus 7cv
– Garmin Striker Plus 7sv
– Garmin Striker Vivid 5cv
– Garmin Striker Vivid 7cv
– Garmin Striker Vivid 7sv
– Lowrance Elite FS 7
– Lowrance Elite FS 9
– Lowrance HDS Carbon 7
– Lowrance HDS LIVE 7
– Lowrance Hook Reveal 7 Series
– Lowrance Hook Reveal 9 Series
– Garmin ECHOMAP Plus 72cv
– Garmin ECHOMAP Plus 73cv
– Garmin ECHOMAP Plus 74cv
– Garmin ECHOMAP Plus 75cv
– Garmin ECHOMAP Plus 77cv
– Garmin GPSMAP 722
– Garmin GPSMAP 722xs
– Garmin GPSMAP 723
– Garmin GPSMAP 723xsv
– Garmin GPSMAP 742
– Garmin GPSMAP 742xs
– Garmin GPSMAP 743
– Garmin GPSMAP 743xsv
– Garmin Striker Plus 5cv
– Garmin Striker Plus 7cv
– Garmin Striker Plus 7sv
– Garmin Striker Vivid 5cv
– Garmin Striker Vivid 7cv
– Garmin Striker Vivid 7sv
– Lowrance Elite FS 7
– Lowrance Elite FS 9
– Lowrance HDS Carbon 7
– Lowrance HDS LIVE 7
– Lowrance Hook Reveal 7 Series
– Lowrance Hook Reveal 9 Series
SPECIFICHE PRODOTTO
– Product Weight: 1.3 lb
– Hardware Included: (1) Friction Washer|(1) 1/4″-20 x 7/8″ T-Bolt
– Product Dimensions: Overall Height: 7.5″
– T-Bolt Dimensions: .48″ x .95″
– Socket-to-Socket Length: 4.66″
– Hole Pattern: See Drawing
– Plate Size: 6.25″ x 2″
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Retail Bag
– Product Weight: 1.3 lb
– Hardware Included: (1) Friction Washer|(1) 1/4″-20 x 7/8″ T-Bolt
– Product Dimensions: Overall Height: 7.5″
– T-Bolt Dimensions: .48″ x .95″
– Socket-to-Socket Length: 4.66″
– Hole Pattern: See Drawing
– Plate Size: 6.25″ x 2″
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Retail Bag
| Tipo Prodotto | Supporto Completo |
|---|---|
| Device | Ecoscandaglio |
| Tipo Sfera | C – 3.81cm (1.8kg) |
