RAM® 2.5″ Square Post Clamp Mount with Round AMPS Plate Ram Mounts RAM-101U-247-25

73,00  Iva Inclusa

RM1032

1 disponibili (ordinabile)

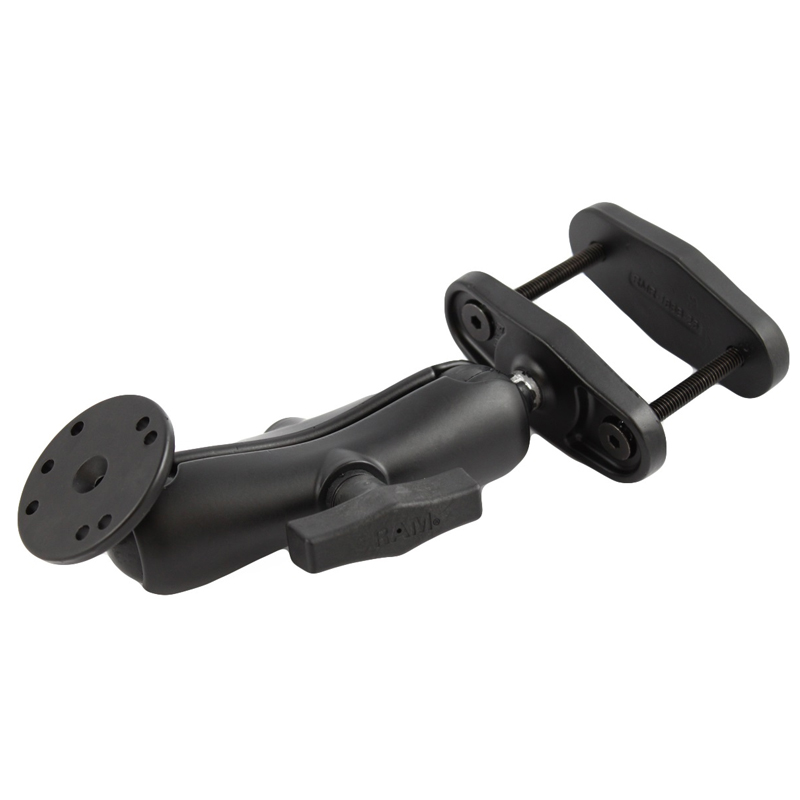

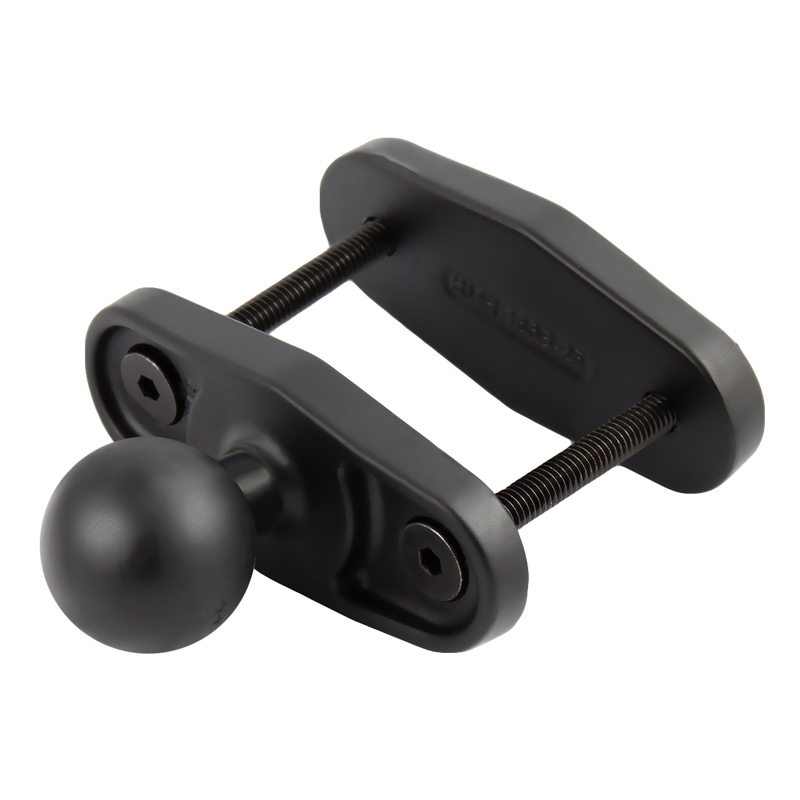

The RAM-101U-247-25 consists of a double socket arm, round 2.5″ diameter round base with the universal AMPS hole pattern and 2.5″ clamp base. The clamp base will wrap around a maximum width of 2.5″ and is tightened by screwing the two plates together with the included nuts and bolts. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

CODICE PRODOTTO: RAM-101U-247-25

TIPO PRODOTTO: Mounts

SPECIFICHE PRODOTTO
– Product Weight: 1.55 lb
– Hardware Included: (2) 5/16″-18 x 3″ Machine Screws|(2) 5/16″-18 Nylock Nuts
– Product Dimensions: Overall Height: 7.85″
– Clamp Range: 2.5″ max width
– Socket-to-Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Flat Edge Clamp
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Vehicle Type: Forklift
– Vehicle Type: Lift Truck

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442924798 COD: RAM-101U-247-25 Categorie: ,
