Supporto a tetto per carrello elevatore Ram Mount RAM-335

120,00  Iva Inclusa

RM5031

2 disponibili (ordinabile)

Supporto a tetto Ram Mounta RAM-335
Questa piastra di montaggio per carrello elevatore è il modo ideale per fissare una sfera RAM alla maggior parte delle gabbie di sollevamento o del tettuccio. L’utilizzo di due piastre identiche di acciaio con molti fori compatibili con moltissimi standard (VESA, UMPS)
Grazie a questi fori, si possono avvitare anche 2 sfere RAM per un doppio sostegno.

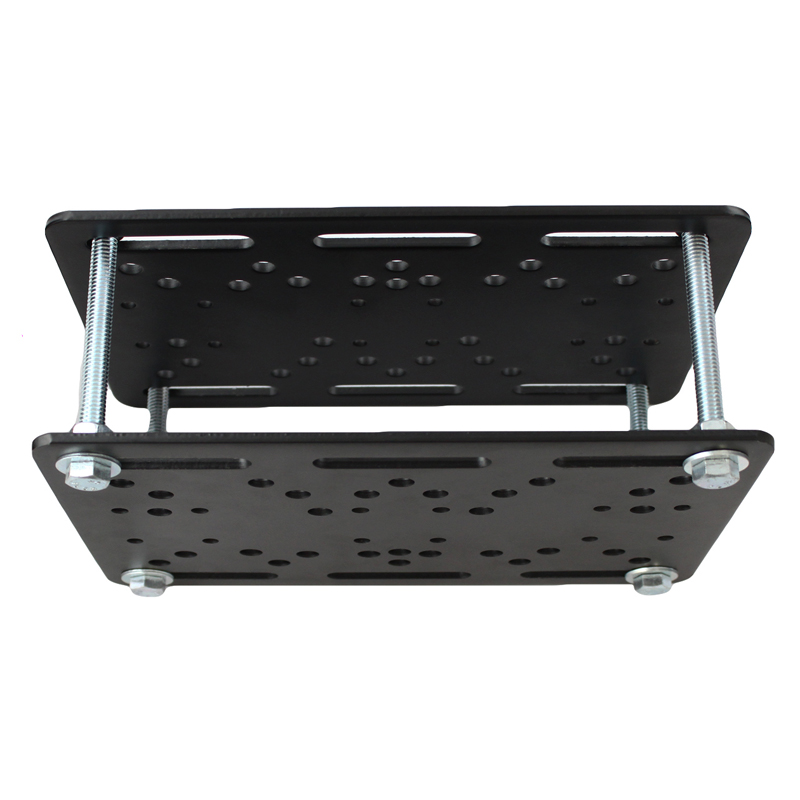

RAM LIFT TRUCK MOUNTING PLATE WITH BASE

Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze. Three popular ball sizes: 1.5″, 2.25 & 3.68″ diameter may be attached to this plate system. Up to 2 balls may be attached to the same plate for multiple applications.

CODICE PRODOTTO: RAM-335

TIPO PRODOTTO: Components

SPECIFICHE PRODOTTO
– Product Weight: 7.85 lb
– Mounting Type: Flat Edge Clamp
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Vehicle Type: Forklift
– Vehicle Type: Lift Truck

VITI INCLUSE
Assembly Hardware
(4) 3/8″-16 x 4″ Zinc Hex Bolts
(4) 3/8″-16 Zinc Hex Nuts
(4) 3/8″ Zinc Lock Washers
(8) 3/8″ Zinc Flat Washers
(4) #10-24 Machine Screws
(4) #10-24 Nylock Nuts

CODICE PRODOTTO: RAM-335

TIPO PRODOTTO: Components

SPECIFICHE PRODOTTO
– Product Weight: 7.95 lb
– Hardware Included: (4) 3/8″-16 x 4″ Zinc Hex Bolts|(4) 3/8″-16 Zinc Hex Nuts|(4) 3/8″ Zinc Lock Washers|(8) 3/8″ Zinc Flat Washers|(4) 5/16″-18 x 1″ Hex Bolts|(4) 5/16″-18 Zinc Hex Nuts|(4) 5/16″ Zinc Lock Washers|(4) 5/16″ Zinc Flat Washers|(4) #10-24 Machine Screws|(4) #10-24 Nylock Nuts

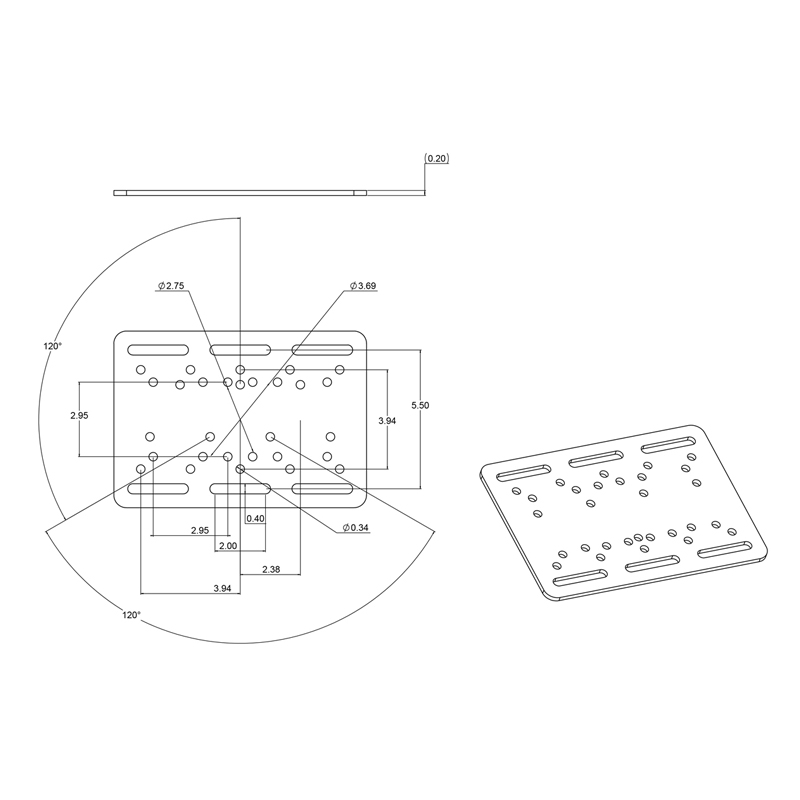

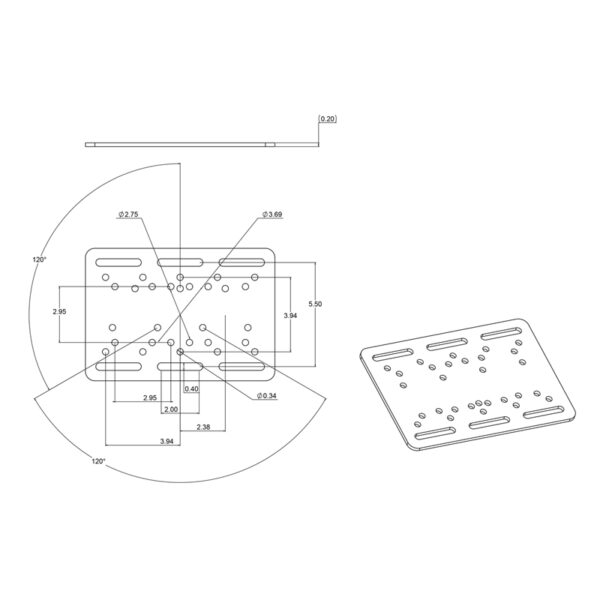

– Hole Pattern: See Drawing
– Materials: Powder coated steel
– Packaging Type: Box
– Mounting Type: Flat Edge Clamp
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 100 x 100 VESA
– Diameter Range: 1″ – 1.25″
– Vehicle Type: Forklift
– Vehicle Type: Lift Truck
DESCRIZIONE INGLESE
Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze. Three popular ball sizes: 1.5″, 2.25 & 3.68″ diameter may be attached to this plate system. Up to 2 balls may be attached to the same plate for multiple applications.

Tipo Prodotto

Componente singolo

Veicolo

Carrello elevatore

Tipo Sfera

C – 3.81cm (1.8kg)

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442903618 COD: RAM-335 Categoria:
