RAM® Dashboard Mount with Backing Plate for 7″-8″ Tablets with Cases Ram Mounts RAM-101B-TAB23U
101,00 € Iva Inclusa
RM5023
20 disponibili

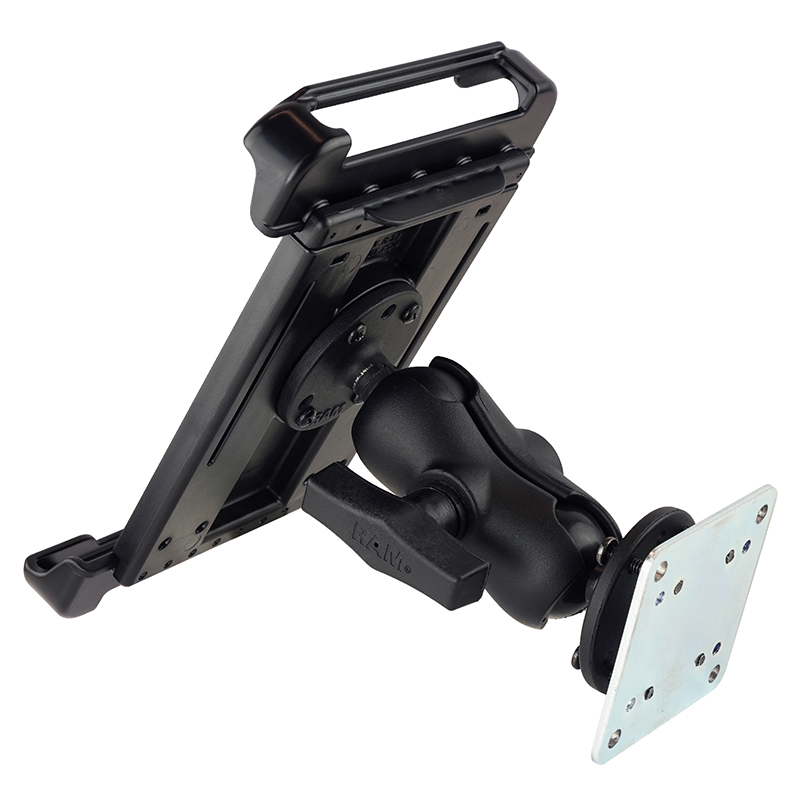

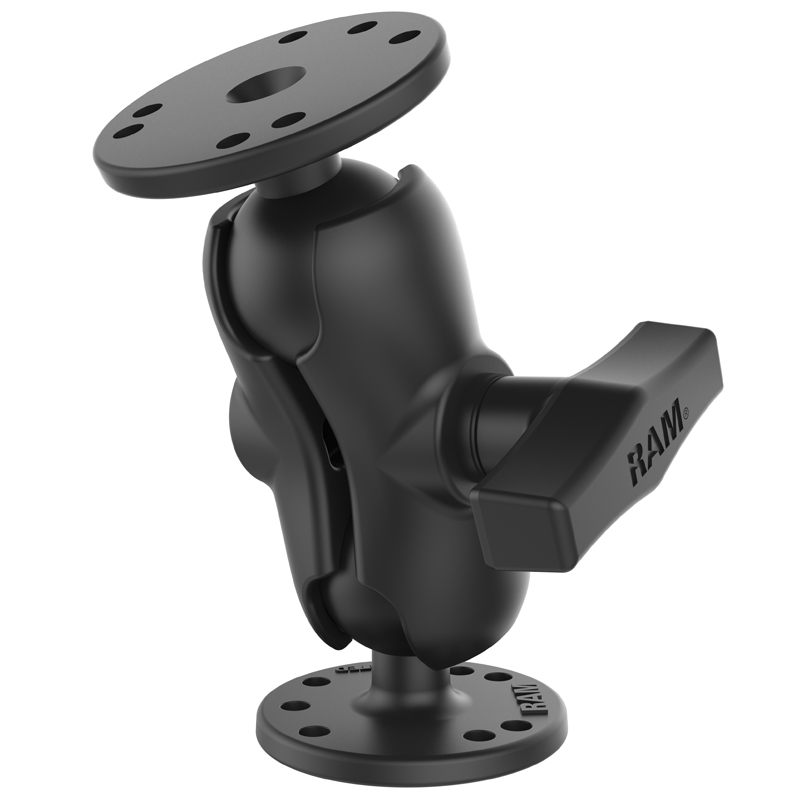

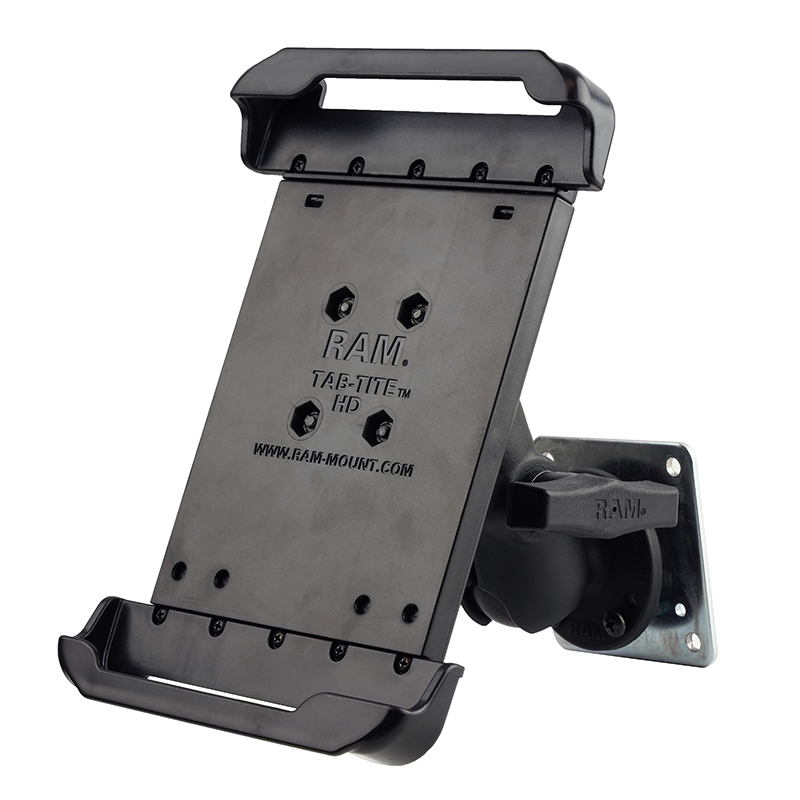

The RAM Tab-Tite bundle is a rugged mount including the RAM Tab-Tite, RAM Universal Double Ball Mount with Two Round Plates, and RAM Backing Plate Adapter. The RAM Tab-Tite spring loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The RAM-101U-B consists of a short double socket arm and two 2.5″ diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 3″ x 3″ steel backing plate with #10-24 threaded holes attaches to a variety of RAM Mounts ball bases.
CODICE PRODOTTO: RAM-101B-TAB23U
LINEA PRODOTTO: Tab-Tite
TIPO PRODOTTO: Mounts with Holder
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Samsung Galaxy Tab 4 8.0 with Otterbox Defender Case
– Samsung Galaxy Tab A 8.0 (2017) with Case
– Samsung Galaxy Tab A 8.0 (2018) with Case
– Samsung Galaxy Tab A 8.0 (2019) with Case
– Samsung Galaxy Tab Active2
– Samsung Galaxy Tab E 8.0 with Verizon Rugged Case
– Samsung Galaxy Tab S 8.4 with Otterbox Defender Case
– Samsung Galaxy Tab 4 8.0 with Otterbox Defender Case
– Samsung Galaxy Tab A 8.0 (2017) with Case
– Samsung Galaxy Tab A 8.0 (2018) with Case
– Samsung Galaxy Tab A 8.0 (2019) with Case
– Samsung Galaxy Tab Active2
– Samsung Galaxy Tab E 8.0 with Verizon Rugged Case
– Samsung Galaxy Tab S 8.4 with Otterbox Defender Case
SPECIFICHE PRODOTTO
– Product Weight: 1.98 lb
– Hardware Included: Assembly Hardware|(1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts
– Holder Dimensions: Height Range: 8.32″ – 10.92″|Width Range: 4.43″ – 5.3″|Depth Range: .13″ – .62″
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum|High strength composite|Powder coated steel
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Short Arm
– Device or Accessory Type: Tablet
– Vehicle Type: Car & Truck
– Product Weight: 1.98 lb
– Hardware Included: Assembly Hardware|(1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts
– Holder Dimensions: Height Range: 8.32″ – 10.92″|Width Range: 4.43″ – 5.3″|Depth Range: .13″ – .62″
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum|High strength composite|Powder coated steel
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Short Arm
– Device or Accessory Type: Tablet
– Vehicle Type: Car & Truck
| Tipo Prodotto | Supporto con Holder |
|---|---|
| Linea Prodotto | Holder Tab-Tite per Tablet |
| Dimensioni Device | Tablet da 7” a 8” |
| Device | Tablet |
| Tipo Sfera | C – 3.81cm (1.8kg) |
