RAM® Double Ball Mount with Garmin Fishfinder Hardware Ram Mounts RAM-101-G4

68,00  Iva Inclusa

RM1010

1 disponibili

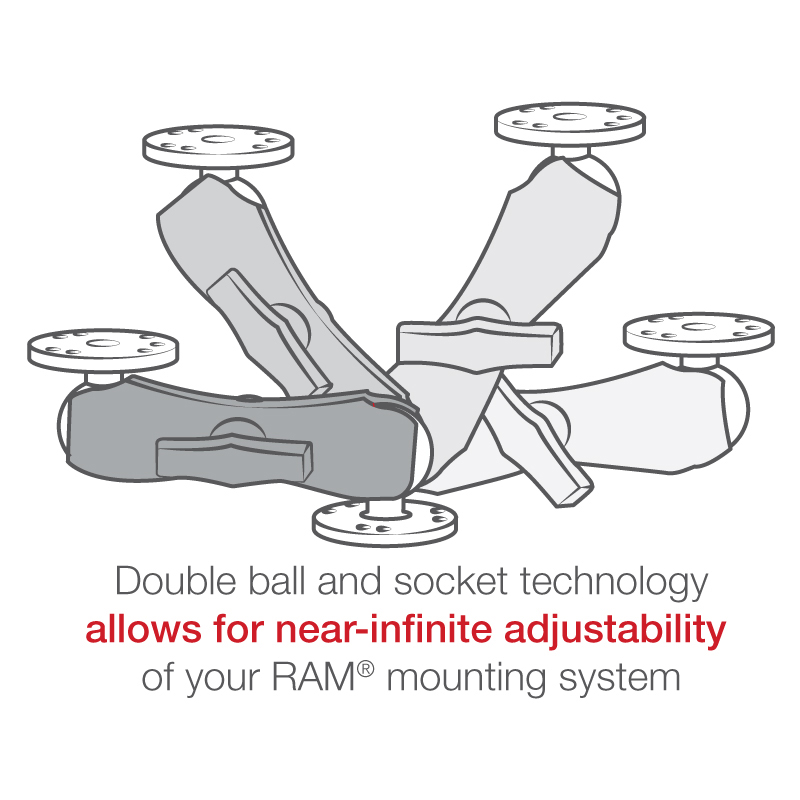

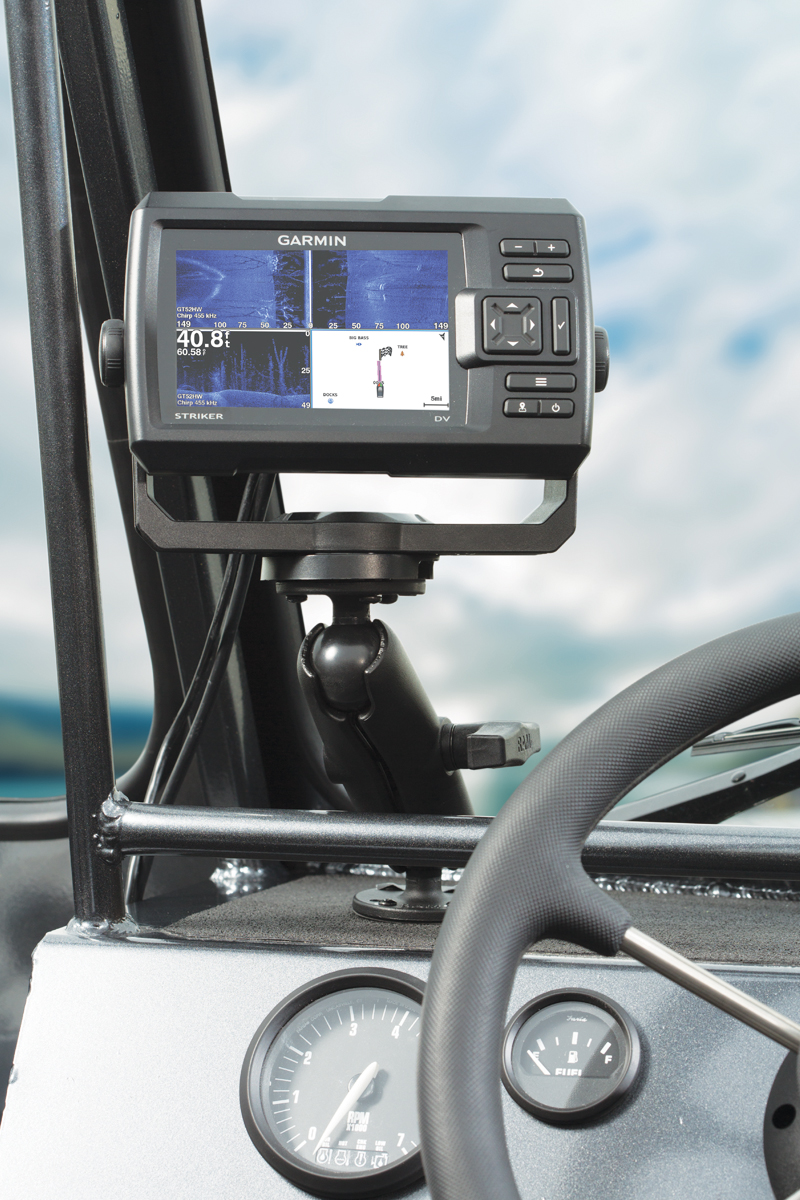

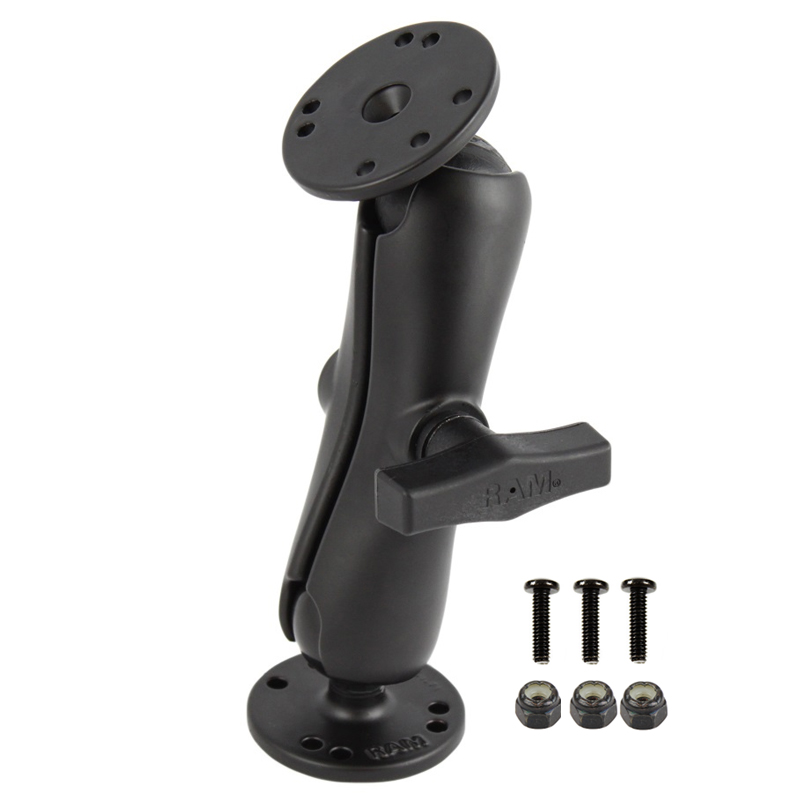

The RAM-101-G4 consists of a double socket arm, 2.5″ diameter round base with the universal AMPS hole pattern and round adapter base that attaches directly to the back of the Garmin echo. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM’s rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo to the RAM Mount.

CODICE PRODOTTO: RAM-101-G4

TIPO PRODOTTO: Mounts

QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin ECHOMAP Plus 42cv
– Garmin ECHOMAP Plus 43cv
– Garmin ECHOMAP Plus 44cv
– Garmin ECHOMAP Plus 45cv
– Garmin Striker 4
– Garmin Striker 4dv
– Garmin Striker Plus 4cv
– Garmin Striker Vivid 4cv
– Garmin echo 100
– Garmin echo 150
– Garmin echo 300c

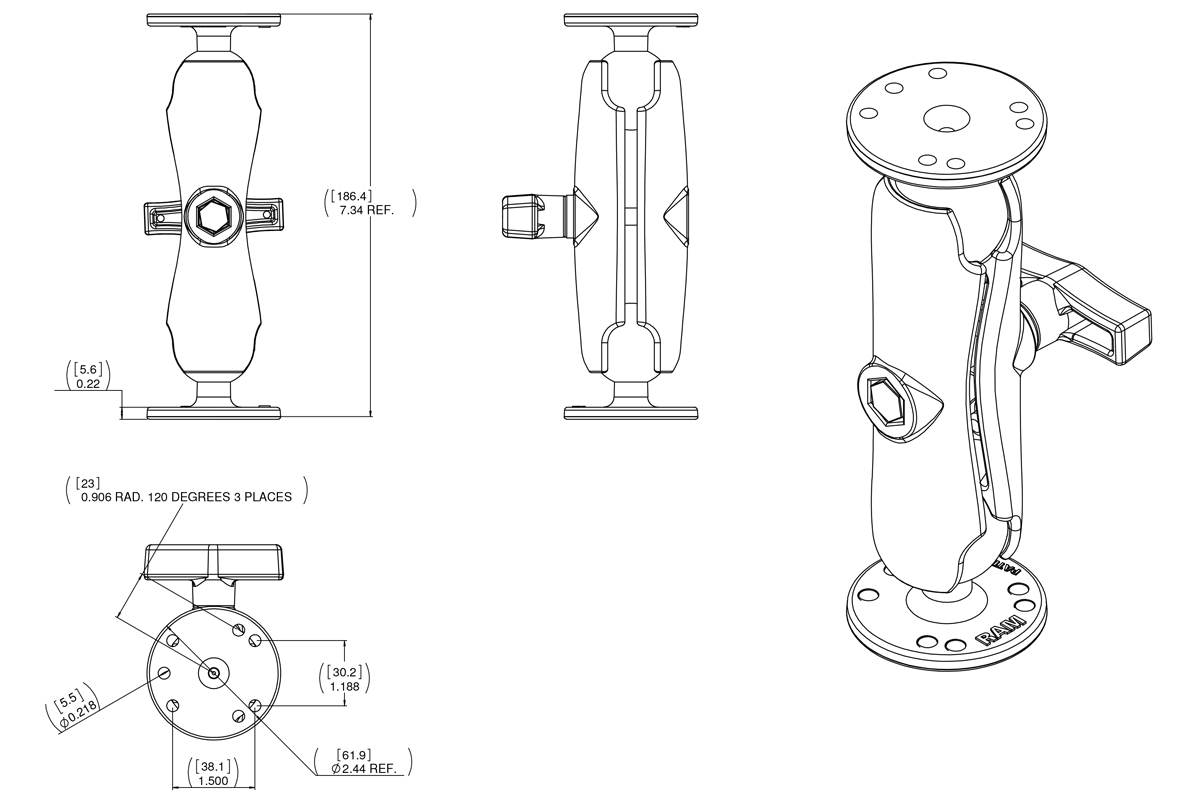

SPECIFICHE PRODOTTO
– Product Weight: 0.75 lb
– Hardware Included: (3) #8-32 x 5/8″ Machine Screws|(3) #8-32 Nylock Nuts
– Product Dimensions: Overall Height: 7.35″
– Socket-to-Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Plate Size: 2.5″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
– Vehicle Type: Power Boat
– Vehicle Type: Kayak

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “RAM® Double Ball Mount with Garmin Fishfinder Hardware Ram Mounts RAM-101-G4”

Il tuo indirizzo email non sarà pubblicato. I campi obbligatori sono contrassegnati *

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442933172 COD: RAM-101-G4 Categoria:
