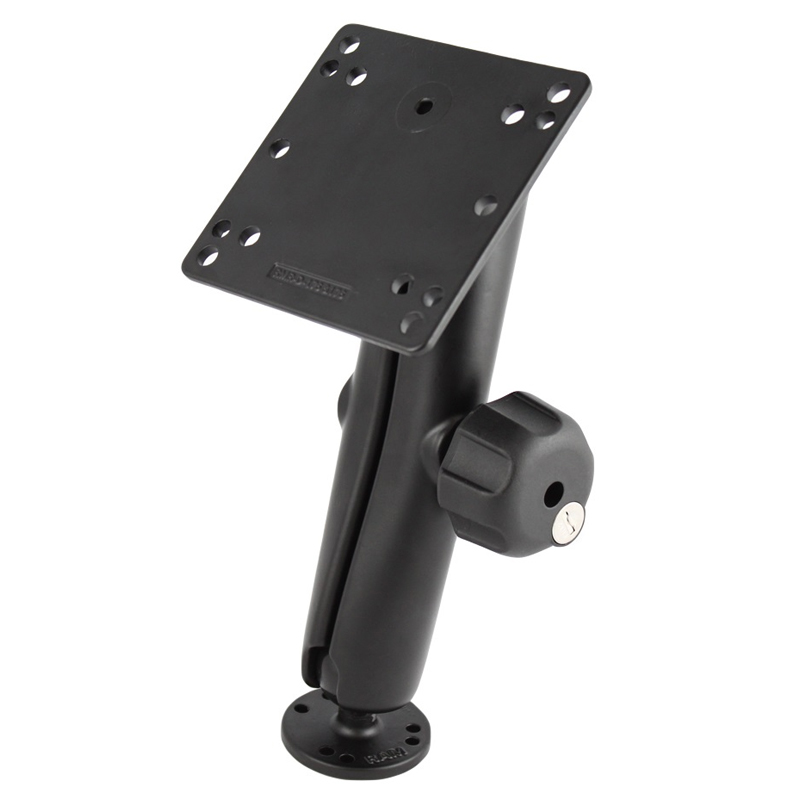

RAM® Key Lock Mount with 100x100mm VESA Plate Ram Mounts RAM-101LU-D-246
130,00 € Iva Inclusa
RM1022
1 disponibili (ordinabile)
The RAM-101LU-D-246 consists of a long double socket arm, 2.5″ diameter round base with the universal AMPS hole pattern and 4.75″ square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit comes with a key lock knob that allows the user to lock the mount in one position, preventing other from adjusting or disassembling the mount without the use of the provided keys.
CODICE PRODOTTO: RAM-101LU-D-246
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 2.53 lb
– Hardware Included: (4) .312″ x .187″ Shoulder Washers(2) Keys
– Product Dimensions: Overall Height: 10.85″
– Socket-to-Socket Length: 8″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Hole Pattern: 100 x 100 VESA
– Hole Pattern: 75 x 75 VESA
– Hole Pattern: 100 x 50 Half VESA
– Socket Arm Length: Long Arm
– Device or Accessory Type: Monitor
– Product Weight: 2.53 lb
– Hardware Included: (4) .312″ x .187″ Shoulder Washers(2) Keys
– Product Dimensions: Overall Height: 10.85″
– Socket-to-Socket Length: 8″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Hole Pattern: 100 x 100 VESA
– Hole Pattern: 75 x 75 VESA
– Hole Pattern: 100 x 50 Half VESA
– Socket Arm Length: Long Arm
– Device or Accessory Type: Monitor
| Tipo Prodotto | Supporto Completo |
|---|---|
| Device | Display |
