RAM Handlebar U-Bolt Double Ball Mount 1/4″-20 Threaded Stud – Short Ram Mounts RAM-B-149ZA-C1U
56,00 € Iva Inclusa
RM2178
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

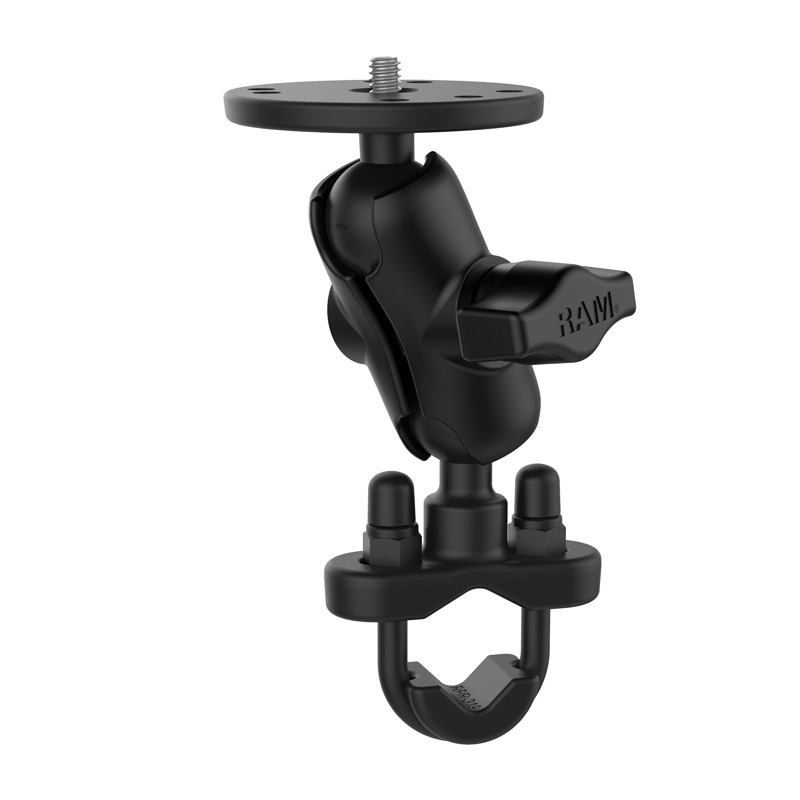

The RAM zinc coated u-bolt rail base consists of the 1″ diameter ball and socket system with RAM Universal 1/4″-20 thread centered on a 2.5″ diameter plate. This mount is designed to be a universal mounting solution for both still and moving cameras. The base has a 1.0″ diameter rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included will fit a circular rail with diameter from 0.5″ to 1.25″. To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black composite covers over the exposed ends of the u-bolt.
The RAM zinc coated u-bolt rail base consists of the 1″ diameter ball and socket system with RAM Universal 1/4″-20 thread centered on a 2.5″ diameter plate. This mount is designed to be a universal mounting solution for both still and moving cameras. The base has a 1.0″ diameter rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included will fit a circular rail with diameter from 0.5″ to 1.25″. To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black composite covers over the exposed ends of the u-bolt.
CODICE PRODOTTO: RAM-B-149ZA-C1U
TIPO PRODOTTO: Camera Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Cameras that contain 1/4″-20 Female Threaded Hole
– Cameras that contain 1/4″-20 Female Threaded Hole
SPECIFICHE PRODOTTO
– Product Weight: 0.59 lb
– Hardware Included: (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket To Socket Length: 1.75″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 0.59 lb
– Hardware Included: (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket To Socket Length: 1.75″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Veicolo | Moto |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
| Tipo Prodotto | Supporti per fotocamera |
