RAM® Double Ball Mount with 100x100mm VESA Plate Ram Mounts RAM-101U-B-246
76,00 € Iva Inclusa
RM1038
1 disponibili (ordinabile)

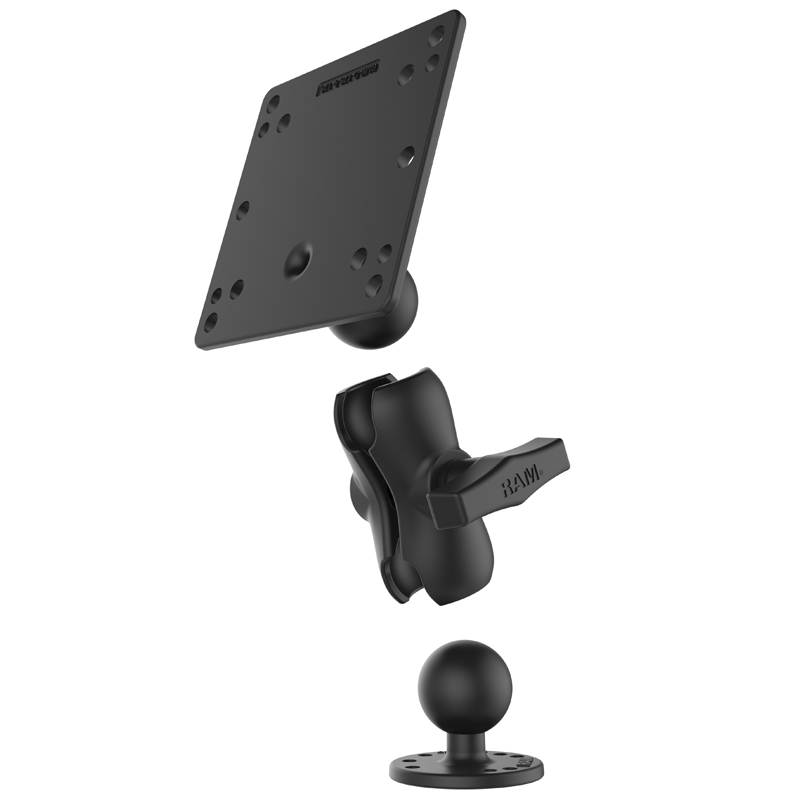

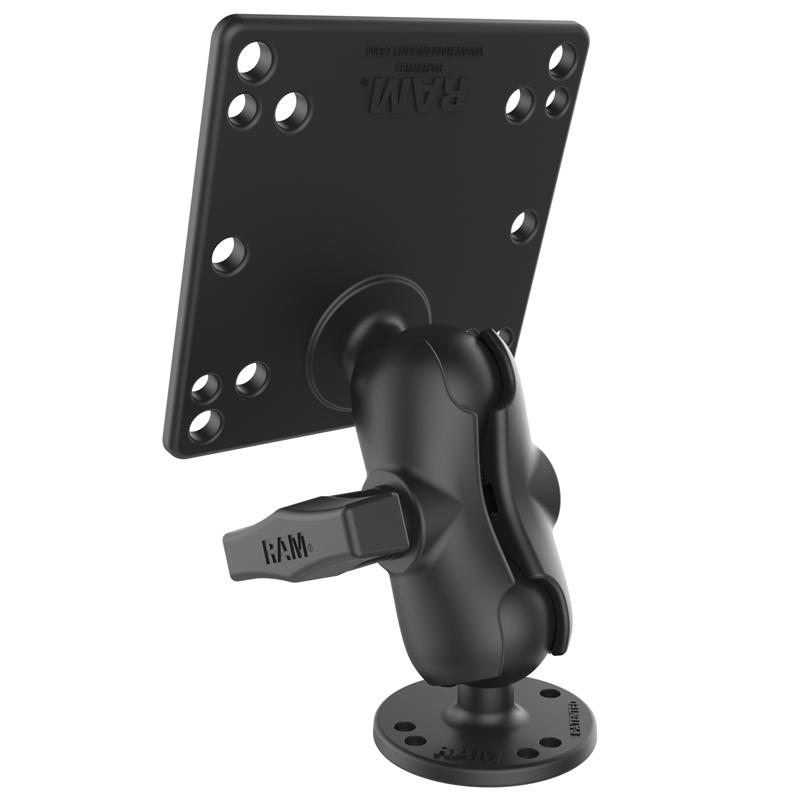

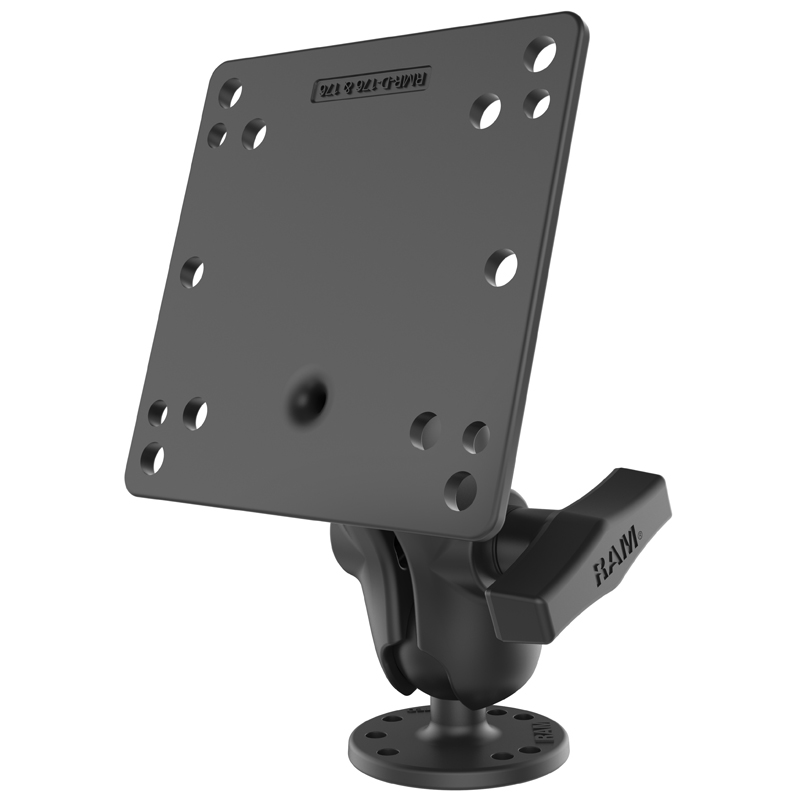

The RAM-101U-B-246 consists of a 2.5″ diameter round base with the universal AMPS hole pattern, SHORT length double socket arm and 4.75″ square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-101U-B-246
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 1.31 lb
– Hardware Included: (4) .312″ x .187″ Shoulder Washers
– Product Dimensions: Overall Height: 5.225″
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Hole Pattern: 100 x 100 VESA
– Hole Pattern: 75 x 75 VESA
– Hole Pattern: 100 x 50 Half VESA
– Socket Arm Length: Short Arm
– Device or Accessory Type: Monitor
– Product Weight: 1.31 lb
– Hardware Included: (4) .312″ x .187″ Shoulder Washers
– Product Dimensions: Overall Height: 5.225″
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Hole Pattern: 100 x 100 VESA
– Hole Pattern: 75 x 75 VESA
– Hole Pattern: 100 x 50 Half VESA
– Socket Arm Length: Short Arm
– Device or Accessory Type: Monitor
| Tipo Prodotto | Supporto Completo |
|---|---|
| Device | Display |
