RAM® Pin-Lock™ Universal Marine Electronic Mount Ram Mounts RAM-S-B-111
62,00 € Iva Inclusa
RM6236
Disponibile su ordinazione

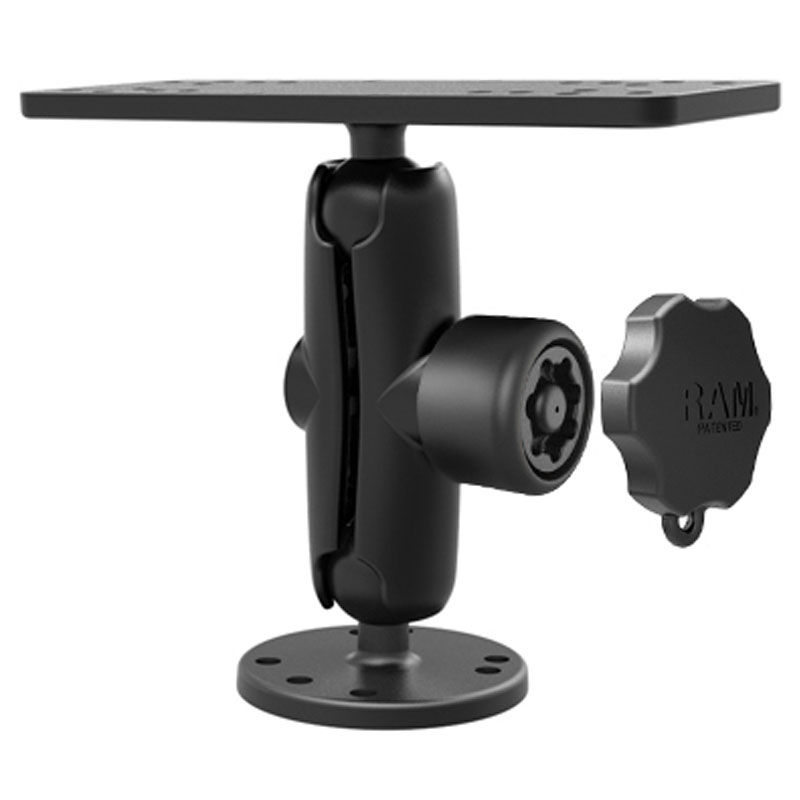

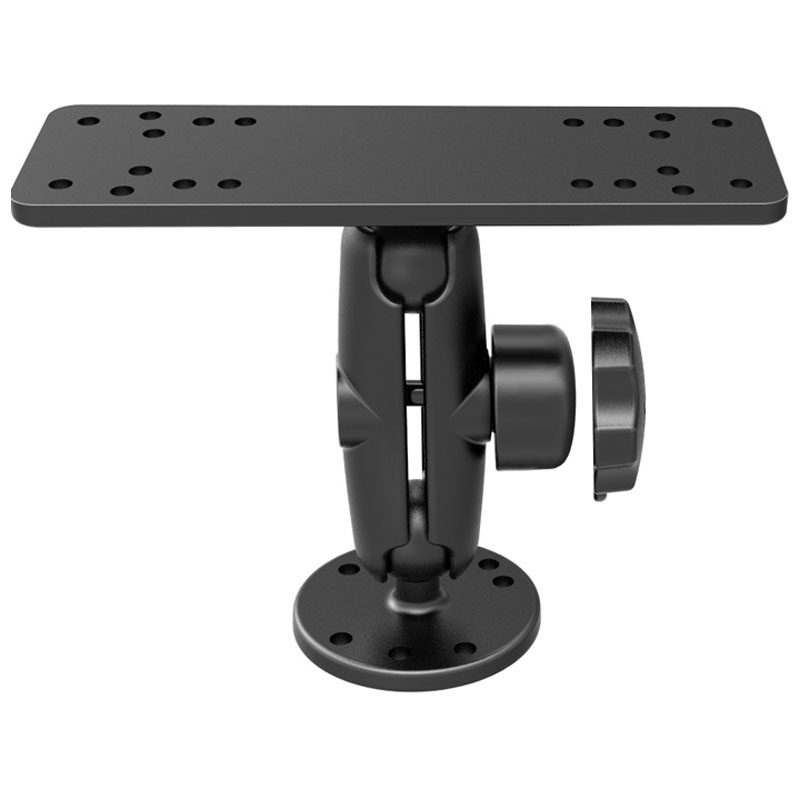

The RAM-S-B-111 consists of a 2.5″ diameter round base, SHORT LENGTH double socket arm, 6.25″ x 2″ rectangle base, RAM mixed combination Pin-Lock security nut and key knob. The 6.25″ x 2″ rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device. Overall Height: 5″ Weight Capacity: Up to 2 lbs. Plate Hole Patterns
CODICE PRODOTTO: RAM-S-B-111
TIPO PRODOTTO: Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin Fishfinders and GPS Chartplotters
– Humminbird Fishfinders and GPS Chartplotters
– Lowrance Fishfinders and GPS Chartplotters
– Raymarine Fishfinders and GPS Chartplotters
– Garmin Fishfinders and GPS Chartplotters
– Humminbird Fishfinders and GPS Chartplotters
– Lowrance Fishfinders and GPS Chartplotters
– Raymarine Fishfinders and GPS Chartplotters
SPECIFICHE PRODOTTO
– Product Weight: 0.71 lb
– Hardware Included: (1) RAM Pin-Lock Security Key
– Product Dimensions: Overall Height: 5″
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Plate Size: Top Plate: 6.25″ x 2″|Bottom Plate: 2.5″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
– Vehicle Type: Power Boat
– Vehicle Type: Kayak
– Product Weight: 0.71 lb
– Hardware Included: (1) RAM Pin-Lock Security Key
– Product Dimensions: Overall Height: 5″
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Plate Size: Top Plate: 6.25″ x 2″|Bottom Plate: 2.5″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
– Vehicle Type: Power Boat
– Vehicle Type: Kayak
| Tipo Prodotto | Supporto Completo |
|---|---|
| Device | Ecoscandaglio |
