RAM® Flat Surface Mount for Zebra Printer Docks Ram Mounts RAM-101U-ZE1
66,00 € Iva Inclusa
RM1089
1 disponibili (ordinabile)

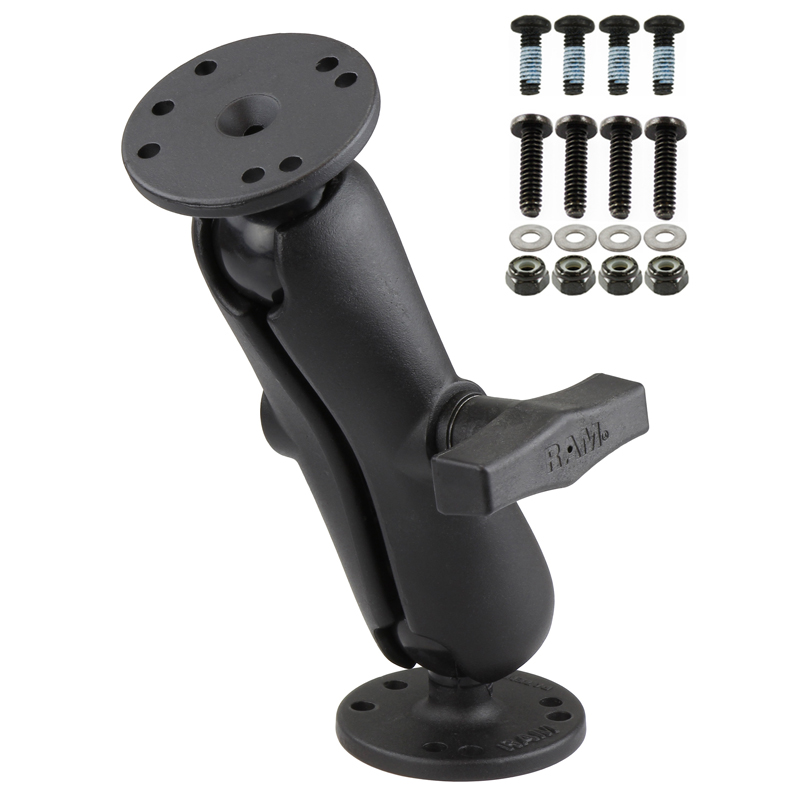

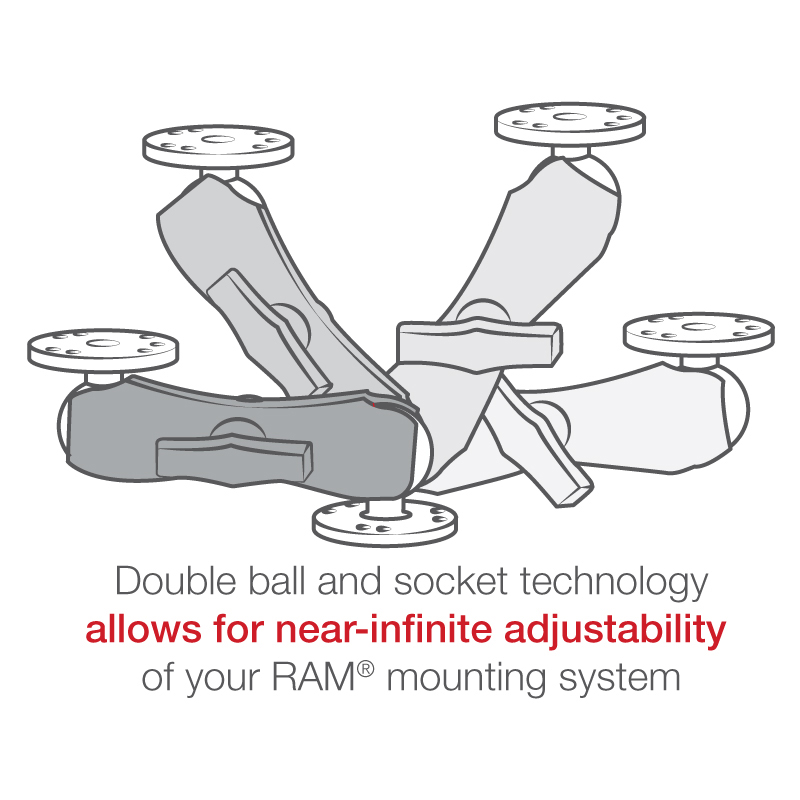

The RAM-101U-ZE1 consists of a double socket arm, two 2.5″ diameter round bases that contain the universal AMPS hole pattern and hardware to attach to the Zebra RW 420 printer. The mount is designed with a 1.5″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
CODICE PRODOTTO: RAM-101U-ZE1
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 1.24 lb
– Hardware Included: (4) #10-24 x 3/4″ Machine Screws|(4) #10 Stainless Steel Flat Washers|(4) #10-24 Nylock Nuts|(4) #8-32 x 1/2″ Machine Screws

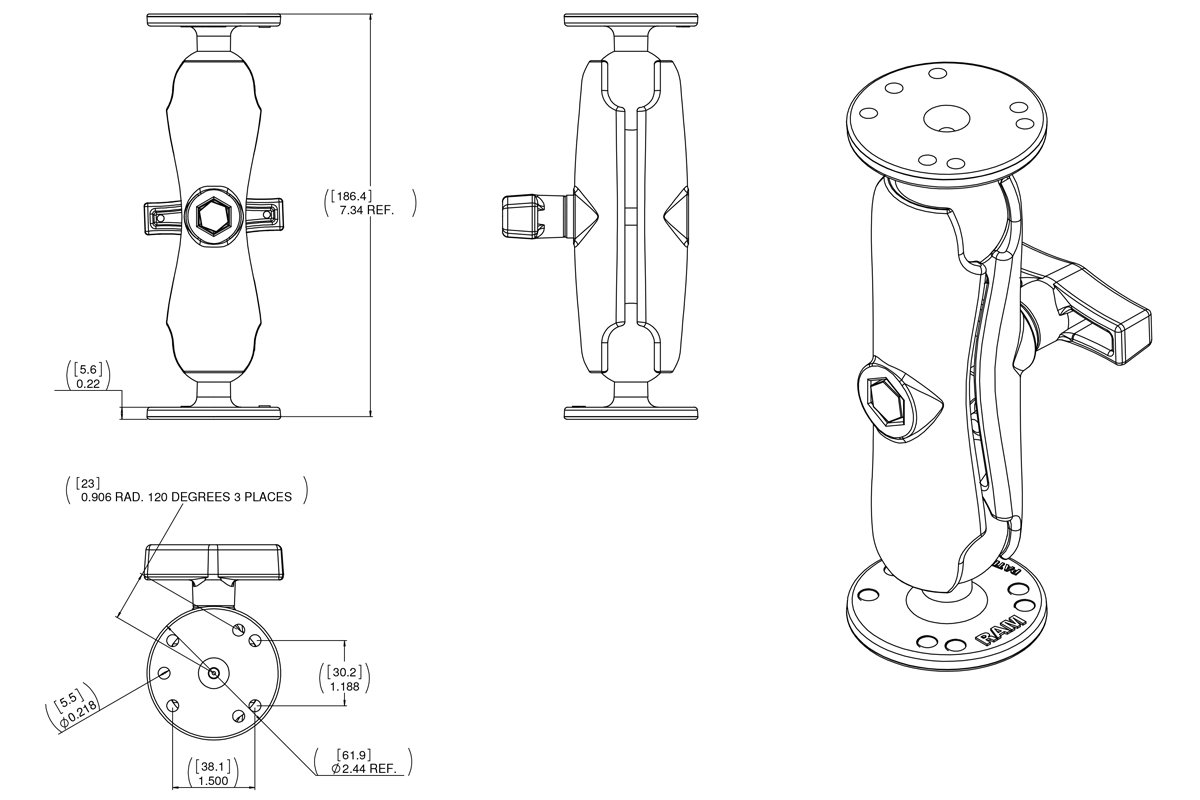

– Product Dimensions: Overall Height: 7.35″
– Socket-to-Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Printer
– Product Weight: 1.24 lb
– Hardware Included: (4) #10-24 x 3/4″ Machine Screws|(4) #10 Stainless Steel Flat Washers|(4) #10-24 Nylock Nuts|(4) #8-32 x 1/2″ Machine Screws
– Product Dimensions: Overall Height: 7.35″
– Socket-to-Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Printer
Tipo Prodotto | Supporto Completo |
---|---|
Device | Stampanti |
