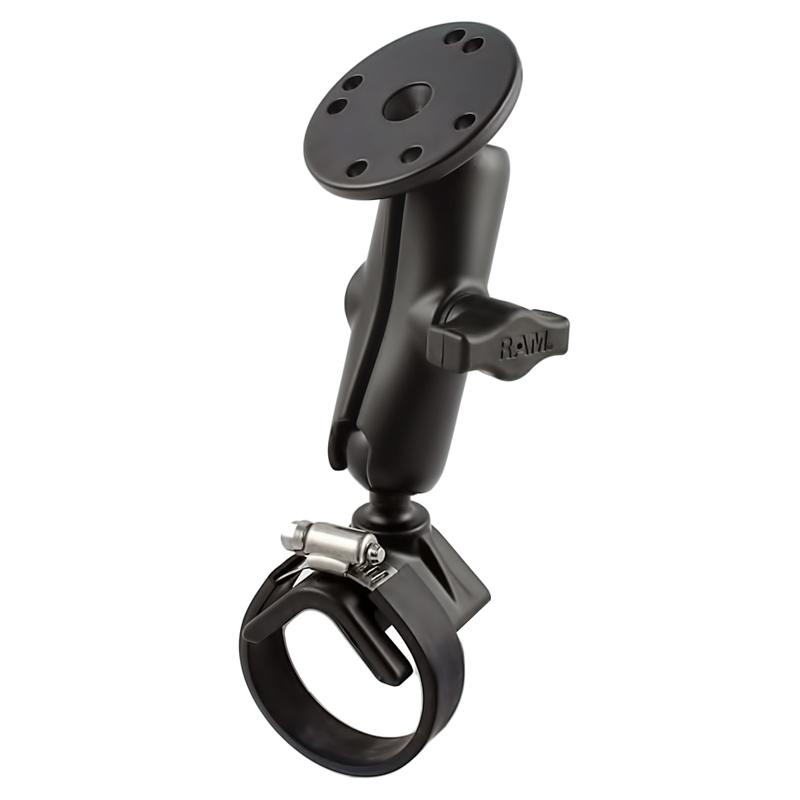

RAM Large Strap Hose Clamp Mount for Beechcraft Bonanza Airplanes Ram Mounts RAM-B-108-STRAP40

59,00  Iva Inclusa

RM1637

1 disponibili (ordinabile)

DESCRIZIONE IN INGLESE:

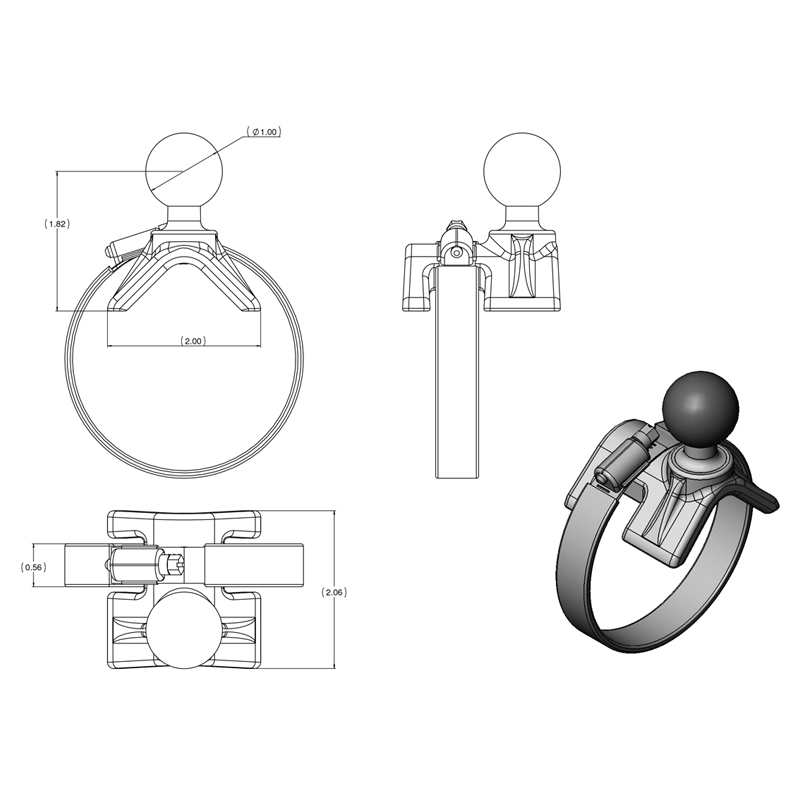

The RAM-B-108B-STRAP40 accommodates rails from 2″ to a maximum of 3″ in diameter. To mount the RAM-B-108B-STRAP40 base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108B-STRAP40 is an alternative mounting base for aircraft such as the Bonanza or Beech with a throw over yoke.

CODICE PRODOTTO: RAM-B-108-STRAP40

TIPO PRODOTTO: Universal Mounts

SPECIFICHE PRODOTTO
– Product Weight: 0.83 lb
– Hardware Included: (1) #40 Worm Drive Strap Clamp|(1) 6″ Rubber Strip
– Clamp Range: 2″ – 3″ diameter
– Socket To Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
Veicolo

Aviazione

Tipo Sfera

B – 2.54cm (0.90kg)

Tipo Prodotto

Supporti Universali

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442937552 COD: RAM-B-108-STRAP40 Categorie: ,
