Sistema di montaggio Ram Mounts RAM-138U-B con braccio corto e sfera di tipo C

66,00  Iva Inclusa

RM1234

49 disponibili (ordinabile)

Sistema di montaggio RAM-MOUNT RAM-138U-B per superfici lisce, barche, nautica. Con asta corta piccola con attacco sfera di tipo “C” RAM-201U-B per sostenere qualsiasi GPS NAUTICO, TABLET, MONITOR e CRADLE RAM-MOUNT fino a 1,8 chilogrammi kg. RAM MNT. W/2.43DIA. & 2.43 X 1.31 BASES

GRAZIE ALLA SUPERFICIE PIANA, il componente può essere applicato su una superficie liscia (barca, camion, camper) e grazie al componente ram-238u è compatibile con tutti i CRADLE o mascherine RAM-MOUNT

L’asta è alta cm. 9cm ed ha il diametro sfera di TIPO “C” da 3,81cm ed è utilizzata per supportare monitor, gps, ecoscandagli, tablet-pc, notebook o componenti fino a 4,5kg circa

Se avete bisogno di fissare un dispositivo pesante fino a 4,5kg (ad esempio dei monitor nelle macchine agricole, gru, carrelli elevatori, autoclavi, carriarmati, trattori, cingolati, aereoplani, elicotteri), con questo dispositivo robustissimo risolverete il problema



CODICE PRODOTTO: RAM-138U-B

TIPO PRODOTTO: Mounts



SPECIFICHE PRODOTTO
– Product Weight: 0.9 lb
– Product Dimensions: Overall Height: 5.225″
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|2-Hole AMPS 1.912″
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Short Arm

DESCRIZIONE IN INGLESE

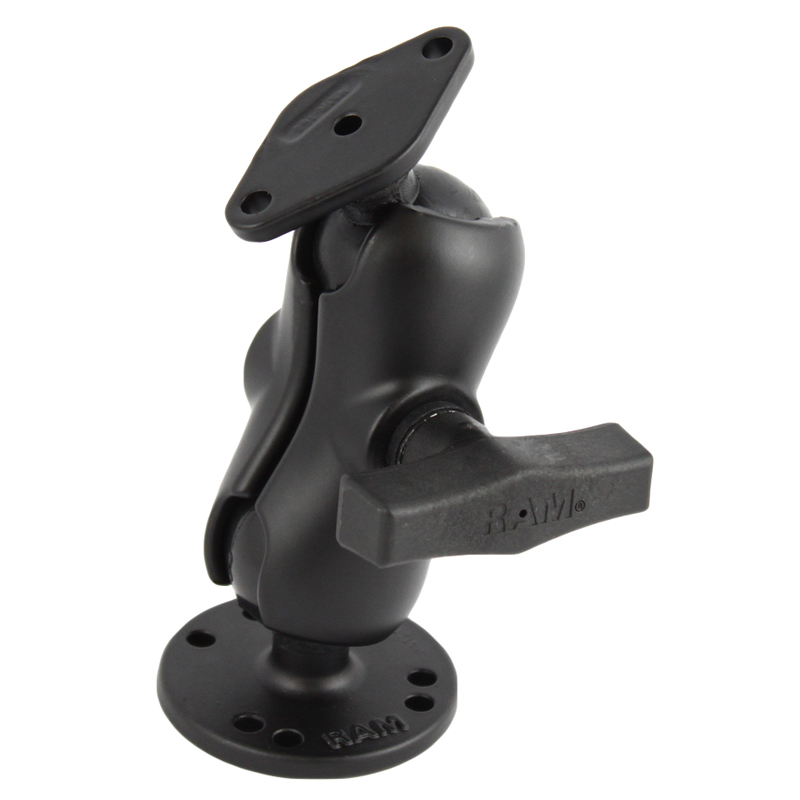

The RAM-138U-B consists of a 2.5″ diameter round base that contains the universal AMPs hole pattern, short double socket arm and diamond base adapter. The mount is designed with a 1.5″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

Questo articolo è disponibile anche in: English (Inglese)

Tipo Prodotto

Supporto Completo

Veicolo

Barca

Tipo Sfera

C – 3.81cm (1.8kg)

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442910265 COD: RAM-138U-B Categorie: , ,
