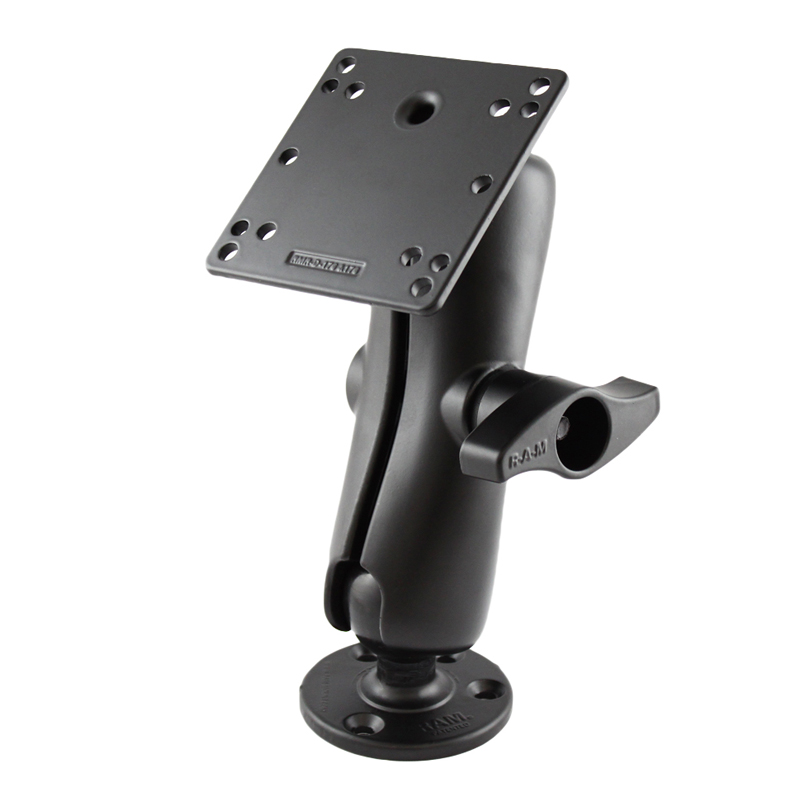

SUPPORTO RAM-MOUNT RAM-D-101U-246 PER MONITOR VESA E SFERA TIPO D PER DISPLAY e MONITOR
161,00 € Iva Inclusa
RM460
20 disponibili (ordinabile)
Supporto Ram Mounts RAM-D-101U-246 per MONITOR STANDARD VESA 10x10cm e 75x75cmadatta a sostenere tutti i tipi di monitor, display, componenti, proiettori, radar con peso di cirva 2,72kg
Il prodotto ha la base piana e quadrata di lunghezza pari a 12 cm e presenta 8 fori simmetrici VESA per poter fissare qualsiasi componente con tale standard
Il prodotto si poggia ad una superficie piana e presenta fori simmetrici standard AMPS per il fissaggio al carrello, auto, camion o qualsiasi autoveicolo con superficie piana
Il prodotto ha la base piana e quadrata di lunghezza pari a 12 cm e presenta 8 fori simmetrici VESA per poter fissare qualsiasi componente con tale standard
Il prodotto si poggia ad una superficie piana e presenta fori simmetrici standard AMPS per il fissaggio al carrello, auto, camion o qualsiasi autoveicolo con superficie piana
Molto utile per supportare pesi di circa 2,72kg pari a 6 libbre ANCHE CON forti SOLLECITAZIONI E VIBRAZIONI
DIMENSIONI
DIAMETRO BASE QUADRATA 12cm con standard VESA 75x75cm e 100×100 cn
DIAMETRO SFERA 5,7cm (2.25″ Rubber Ball “D” Size)
ALTEZZA ASTA 21,3 cm (8.375″)
DIAMETRO BASE SFERA 9,34cm
MATERIALE
METALLO ALLUMINIO RESISTENTISSIMO RIVESTITO VERNICE MARINA
CODICE PRODOTTO
RAM-D-101U-246
CODICE PRODOTTO: RAM-D-101U-246
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 4.12 lb
– Hardware Included: (4) .312″ x .187″ Shoulder Washers
– Product Dimensions: Overall Height: 11.125″
– Socket-to-Socket Length: 6.88″
– Hole Pattern: See Drawings
– Weight Capacity: Standard Use: 6 lbs|Heavy-Duty Use: 5 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: D Size 2.25″ (Holds 6 lbs)
– Hole Pattern: 100 x 100 VESA
– Hole Pattern: 75 x 75 VESA
– Hole Pattern: 100 x 50 Half VESA
– Hole Pattern: 3-Hole 120 Degree (Large)
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Monitor
– Product Weight: 4.12 lb
– Hardware Included: (4) .312″ x .187″ Shoulder Washers
– Product Dimensions: Overall Height: 11.125″
– Socket-to-Socket Length: 6.88″
– Hole Pattern: See Drawings
– Weight Capacity: Standard Use: 6 lbs|Heavy-Duty Use: 5 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: D Size 2.25″ (Holds 6 lbs)
– Hole Pattern: 100 x 100 VESA
– Hole Pattern: 75 x 75 VESA
– Hole Pattern: 100 x 50 Half VESA
– Hole Pattern: 3-Hole 120 Degree (Large)
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Monitor
DESCRIZIONE INGLESE
The RAM-D-101U-246 consists of a 3.68″ diameter round base, STANDARD length double socket arm and 4.75″ square plate with the VESA hole pattern. The 4.75″ square plate has 4x100mm holes and 4x75mm holes in each corner. The 3.68″ diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
The RAM-D-101U-246 consists of a 3.68″ diameter round base, STANDARD length double socket arm and 4.75″ square plate with the VESA hole pattern. The 4.75″ square plate has 4x100mm holes and 4x75mm holes in each corner. The 3.68″ diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI
