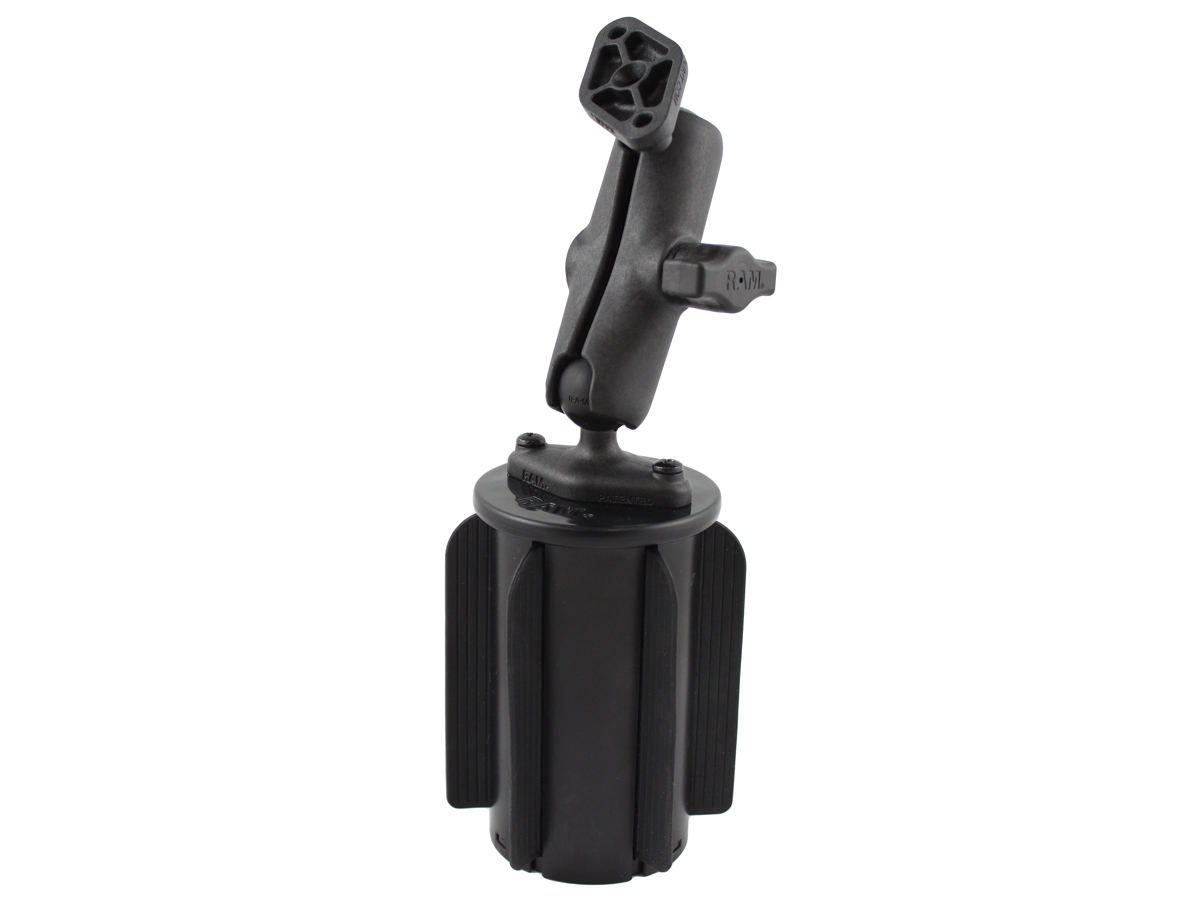

Supporto ram-mount RAP-299-3-B-102U per vano foro auto per porta lattine e bibite

CODICE PRODOTTO: RAP-299-3-B-102U

LINEA PRODOTTO: RAM-A-CAN II

TIPO PRODOTTO: Mounts

SPECIFICHE PRODOTTO
– Product Weight: 1.54 lb
– Hardware Included: Assembly Hardware
– Product Dimensions: Overall Height: 9.75″
– Wedge Dimensions: Fits cup holders between 2.57″ – 3.5″ inside diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Plate Size: 2.43″ x 1.31″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: High strength composite
– Packaging Type: Poly Bag
– Mounting Type: Wedge Mount
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Medium Arm
– Vehicle Type: Car & Truck

DESCRIZIONE INGLESE

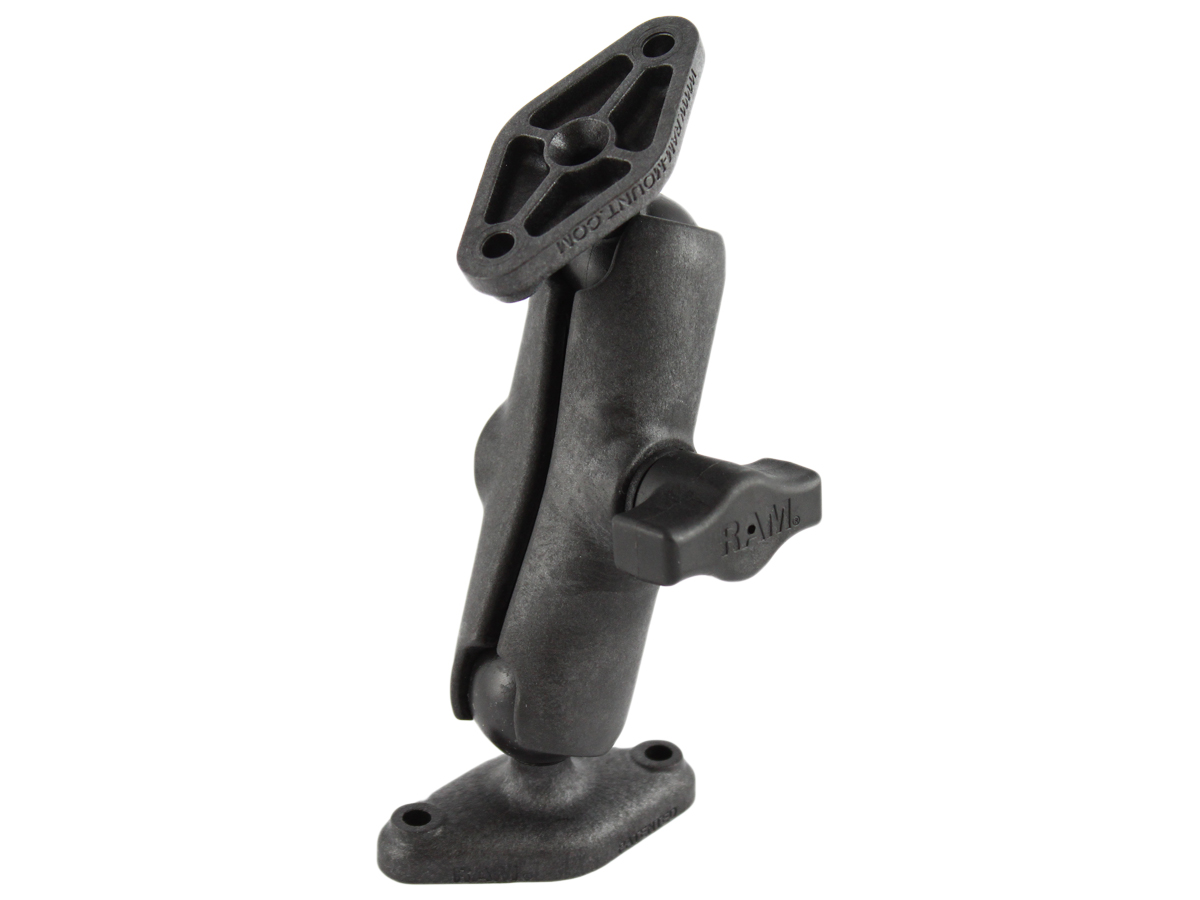

The RAP-299-3-B-102U consists of a double socket arm, two diamond bases and RAM-A-CAN II cup holder base. The diamond bases measure 2.43″ x 1.31″ diamond base and contain two holes 1.912″ from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The RAM-A-CAN II cup holder base serves as a mounting point for the diamond base. Compatible with any vehicle cup holder with an inside diameter range of 2.57″ to 3.5″.
