RAM® Fishfinder Diamond Plate Mount for Humminbird Devices Ram Mounts RAM-B-107U-238
52,00 € Iva Inclusa
RM1623
1 disponibili (ordinabile)

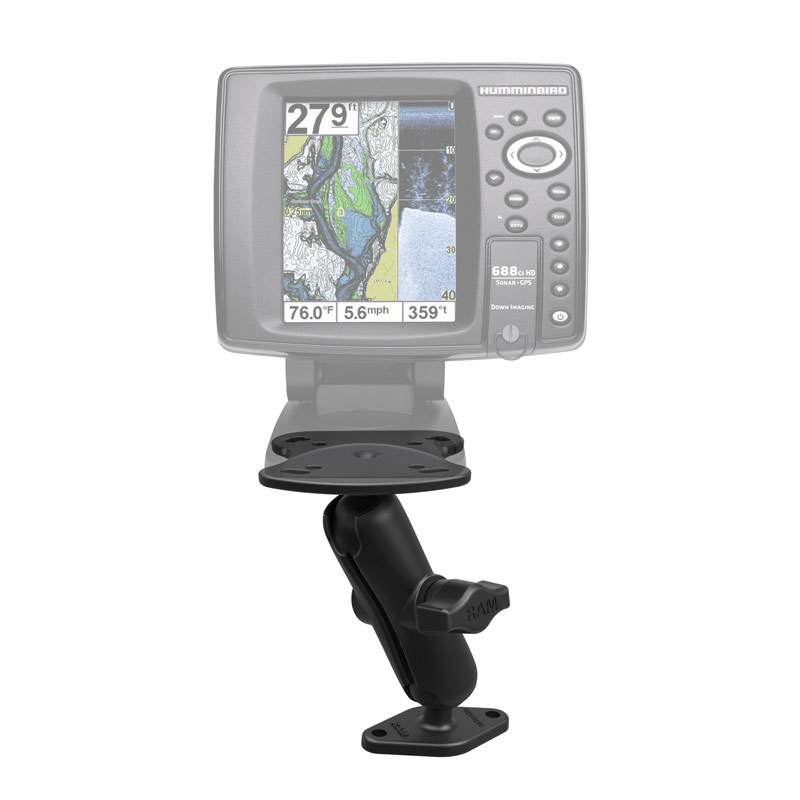

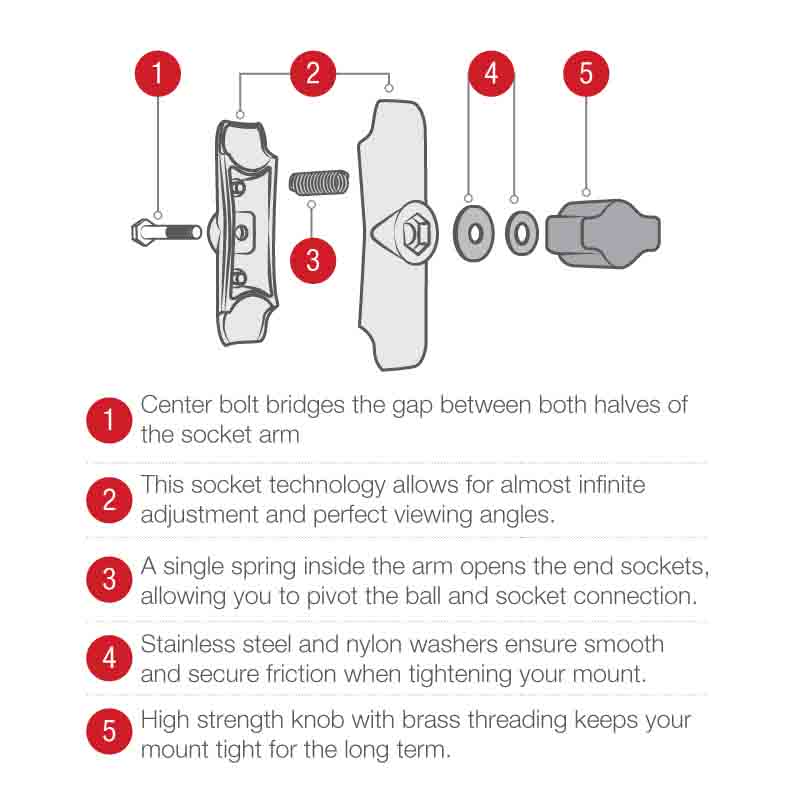

The RAM-B-107U-238 consists of a double socket arm, diamond base and connecting Humminbird/Apelco marine base. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The diamond base contains two holes 1.912″ from center to center, positioned at both ends of the base. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-107U-238
TIPO PRODOTTO: Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Humminbird 100 Series
– Humminbird 300 Series
– Humminbird 500 Series
– Humminbird 600 Series
– Humminbird 700 Series
– Humminbird Matrix Series (excluding Matrix 97)
– Lowrance Elite-5
– Lowrance Elite-5M
– Lowrance Elite-5X
– Raymarine Apelco Fishfinder with matching hole pattern
– Humminbird 100 Series
– Humminbird 300 Series
– Humminbird 500 Series
– Humminbird 600 Series
– Humminbird 700 Series
– Humminbird Matrix Series (excluding Matrix 97)
– Lowrance Elite-5
– Lowrance Elite-5M
– Lowrance Elite-5X
– Raymarine Apelco Fishfinder with matching hole pattern
SPECIFICHE PRODOTTO
– Product Weight: 0.68 lb
– Product Dimensions: Overall Height: 5″
– Socket-to-Socket Length: 3″
– Hole Pattern: 2-Hole AMPS: 1.912″|See Drawing
– Plate Size: Fishfinder Plate: 4.25″ x 3.81″|Round Plate: 2.43″ x 1.31″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
– Vehicle Type: Power Boat
– Vehicle Type: Kayak
– Product Weight: 0.68 lb
– Product Dimensions: Overall Height: 5″
– Socket-to-Socket Length: 3″
– Hole Pattern: 2-Hole AMPS: 1.912″|See Drawing
– Plate Size: Fishfinder Plate: 4.25″ x 3.81″|Round Plate: 2.43″ x 1.31″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
– Vehicle Type: Power Boat
– Vehicle Type: Kayak
| Tipo Prodotto | Supporto Completo |
|---|---|
| Veicolo | Barca |
| Device | Ecoscandaglio |
