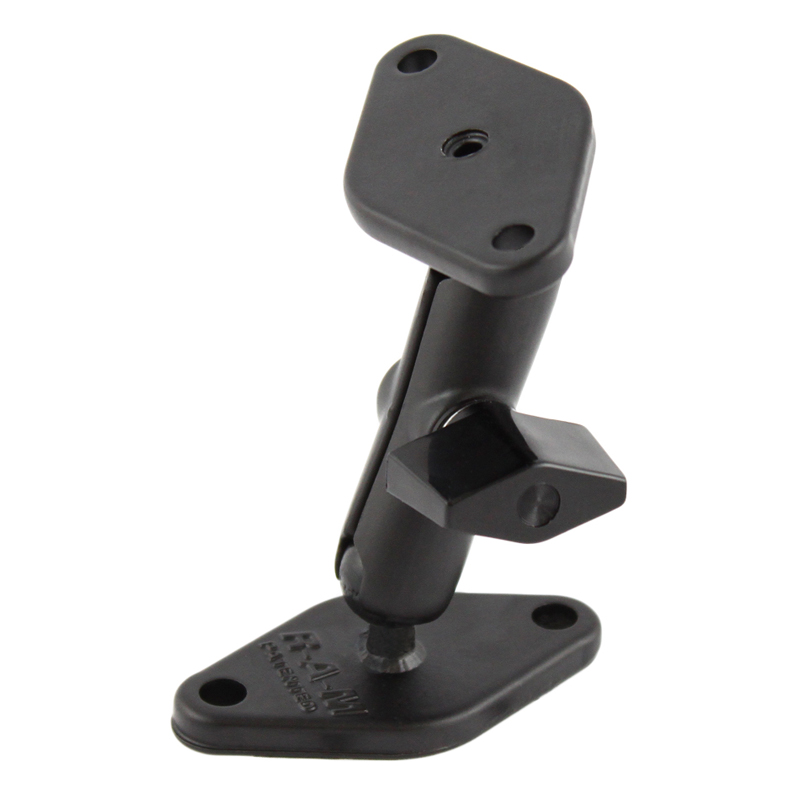

RAM® Double Ball Diamond Plate Mount Ram Mounts RAM-A-101U
41,00 € Iva Inclusa
RM1522
1 disponibili (ordinabile)

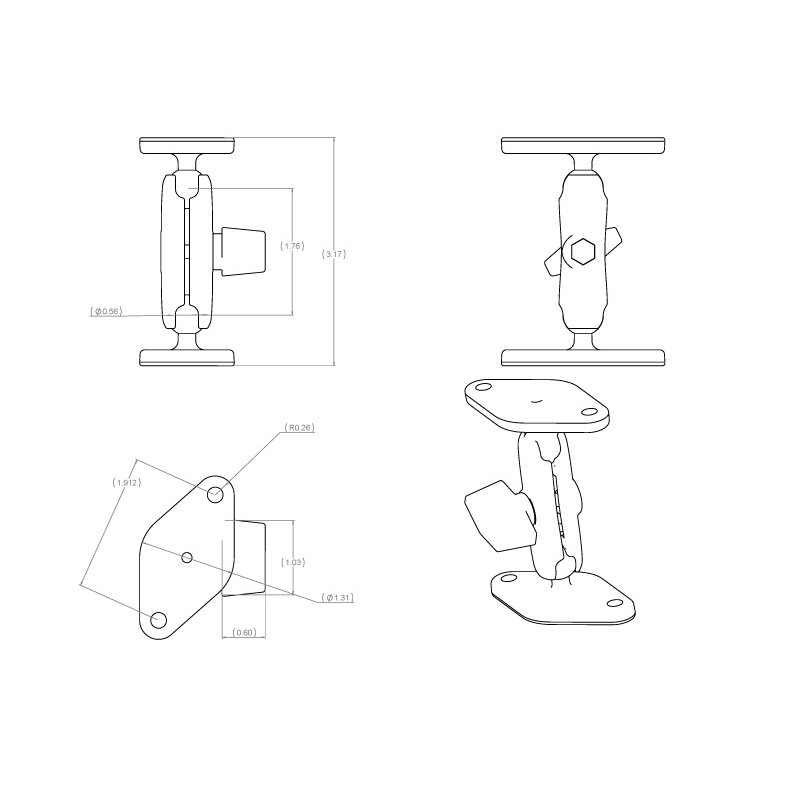

The RAM-A-101U consists of a double socket arm and two diamond bases. The diamond bases measure 2.43″ x 1.31″ diamond base and contain two holes 1.912″ from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 0.56″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
CODICE PRODOTTO: RAM-A-101U
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.17 lb
– Socket-to-Socket Length: 1.67″
– Hole Pattern: 2-Hole AMPS 1.912″
– Weight Capacity: .5 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: A Size 9/16″ (Holds 1 lb)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Medium Arm
– Product Weight: 0.17 lb
– Socket-to-Socket Length: 1.67″
– Hole Pattern: 2-Hole AMPS 1.912″
– Weight Capacity: .5 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: A Size 9/16″ (Holds 1 lb)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Medium Arm
| Tipo Prodotto | Supporto Completo |
|---|
