RAM® Handlebar U-Bolt Double Ball Mount with Round Plate Ram Mounts RAM-B-101-C-231ZU

56,00  Iva Inclusa

RM1536

1 disponibili (ordinabile)

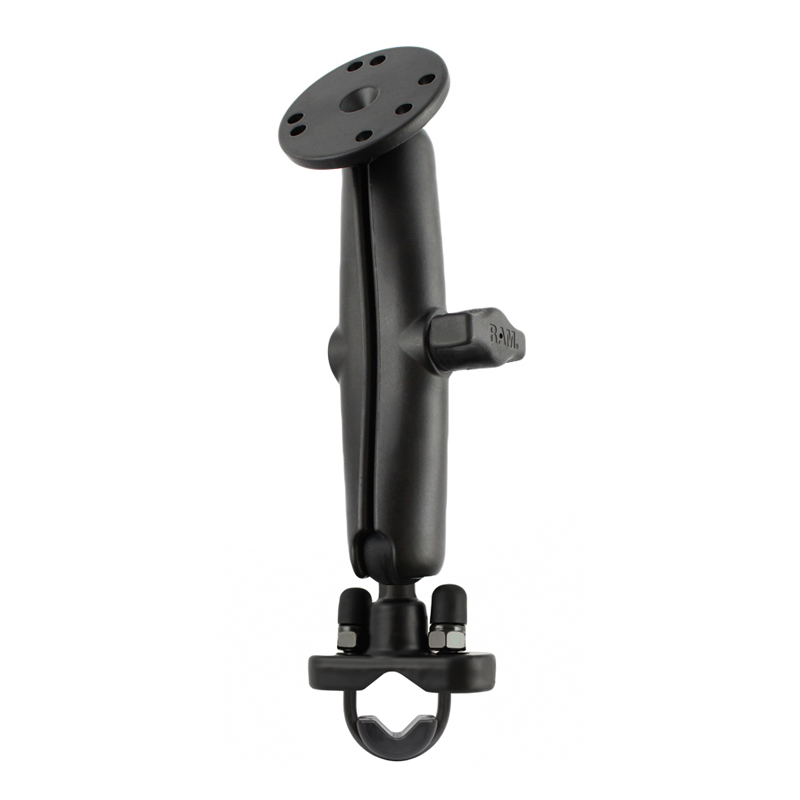

The RAM-B-101-C-231ZU consists of a zinc coated u-bolt base, 6″ long double socket arm and 2.5″ diameter round base that contains the universal AMPs hole pattern. Included in this package is hardware that will accommodate rails from 0.50″ to 1.25″ in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

CODICE PRODOTTO: RAM-B-101-C-231ZU

TIPO PRODOTTO: Mounts

SPECIFICHE PRODOTTO
– Product Weight: 1 lb
– Hardware Included: (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 5.31″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Long Arm
– Vehicle Type: Motorcycle

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442900891 COD: RAM-B-101-C-231ZU Categorie: ,
