RAM® Double U-Bolt Rail Mount for Smaller Rails Ram Mounts RAM-B-101-235U
53,00 € Iva Inclusa
RM1526
1 disponibili (ordinabile)

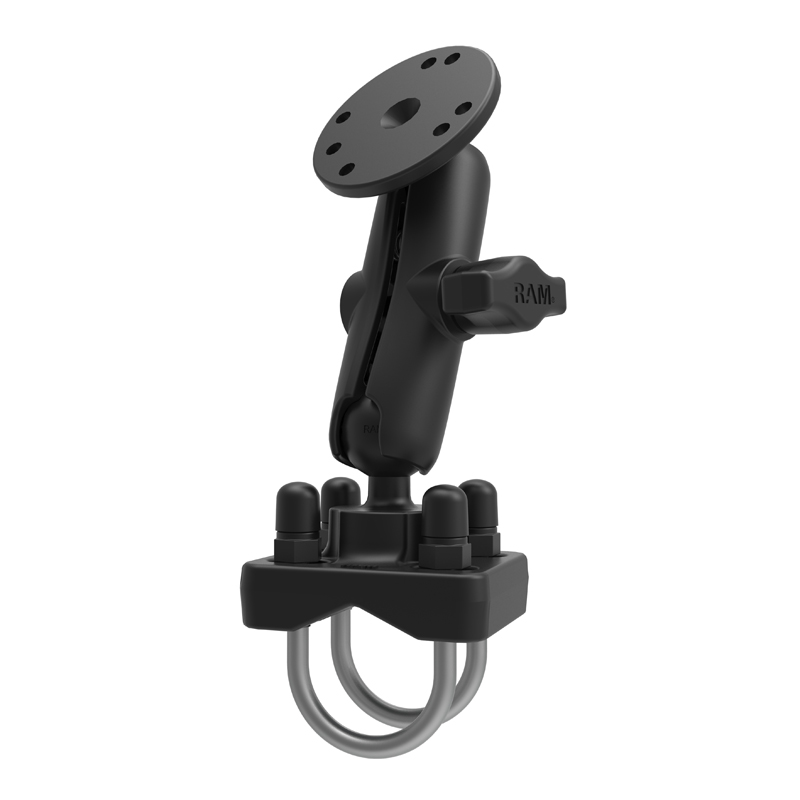

The RAM-B-101-235U consists of a double socket arm, one round 2.5″ diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1″ to 1.25″ in diameter. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-101-235U
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.87 lb
– Hardware Included: (2) 1/4″-20 U-Bolts for 1″ – 1.25″ Rails|(4) 1/4″-20 Nylock Nuts|(4) Rubber Caps
– Clamp Range: 1″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Vehicle Type: ATV
– Vehicle Type: UTV
– Product Weight: 0.87 lb
– Hardware Included: (2) 1/4″-20 U-Bolts for 1″ – 1.25″ Rails|(4) 1/4″-20 Nylock Nuts|(4) Rubber Caps
– Clamp Range: 1″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Vehicle Type: ATV
– Vehicle Type: UTV
| Tipo Prodotto | Supporto Completo |
|---|
