RAM® Handlebar U-Bolt Double Ball Mount with Rectangle AMPS Plate Ram Mounts RAM-B-149Z-C-347U

56,00  Iva Inclusa

RM2063

1 disponibili (ordinabile)

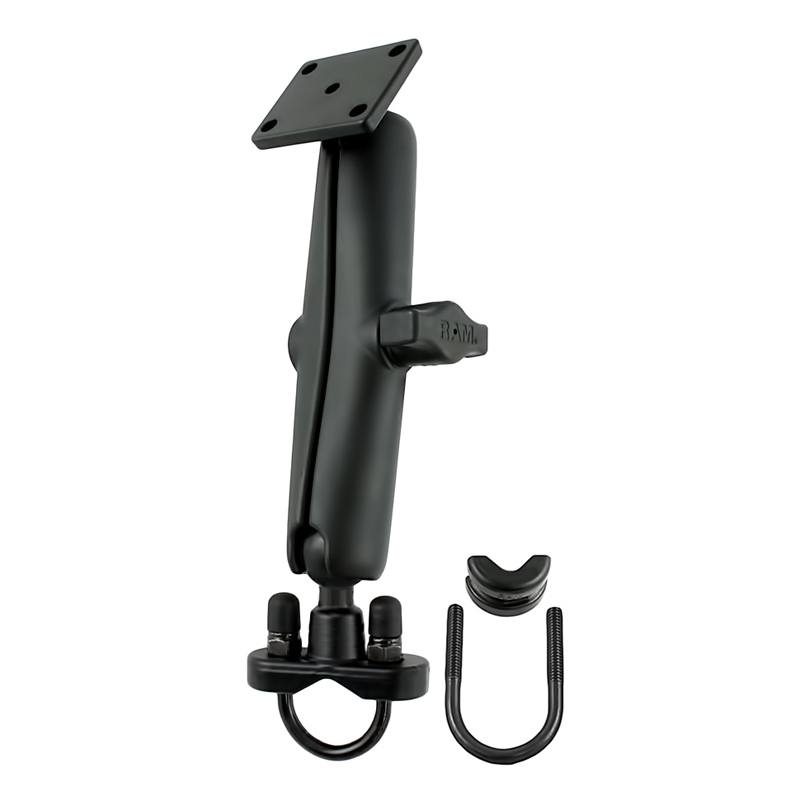

The RAM-B-149Z-C-347U consists of a zinc coated u-bolt base, LONG double socket arm and square adapter base that contains the universal AMPs hole pattern.. Included in this package is hardware that will accommodate rails from 0.50″ to 1.25″ in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″. The square adapter base contains four pre-drilled holes at each corner, making the universal 1.5 x 1.188 (hole spacing) AMPS hole pattern. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

CODICE PRODOTTO: RAM-B-149Z-C-347U

TIPO PRODOTTO: Mounts

QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin GPSMAP 276Cx
– Garmin dezl OTR1000
– Garmin zumo 390LM
– Garmin zumo 396 LMT-S
– Garmin zumo 400
– Garmin zumo 450
– Garmin zumo 500
– Garmin zumo 550
– Garmin zumo 590
– Garmin zumo 595LM
– Garmin zumo 660
– Garmin zumo 665
– Garmin zumo XT
– Magellan TRX7
– Magellan TRX7 CS
– Road Tech Zumo 590
– Road Tech Zumo 660
– Road Tech Zumo 665
– TomTom Rider 2
– TomTom Urban Rider
– Trail Tech Voyager Pro
SPECIFICHE PRODOTTO
– Product Weight: 0.87 lb
– Hardware Included: (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 5.31″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Long Arm
– Diameter Range: .5″ – 1.25″
– Vehicle Type: Motorcycle
– Vehicle Type: Dirt Bike

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI
