RAM ATV/UTV Rail Mount with 1/4″-20 Camera Adapter – Medium Arm Ram Mounts RAM-B-231Z-2-366U
63,00 € Iva Inclusa
RM4088
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

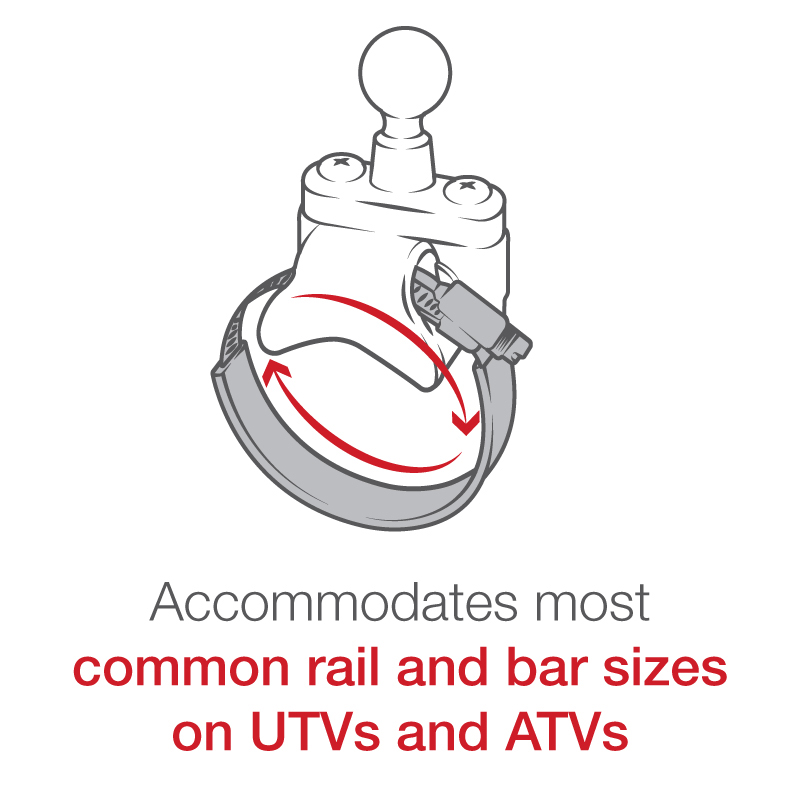

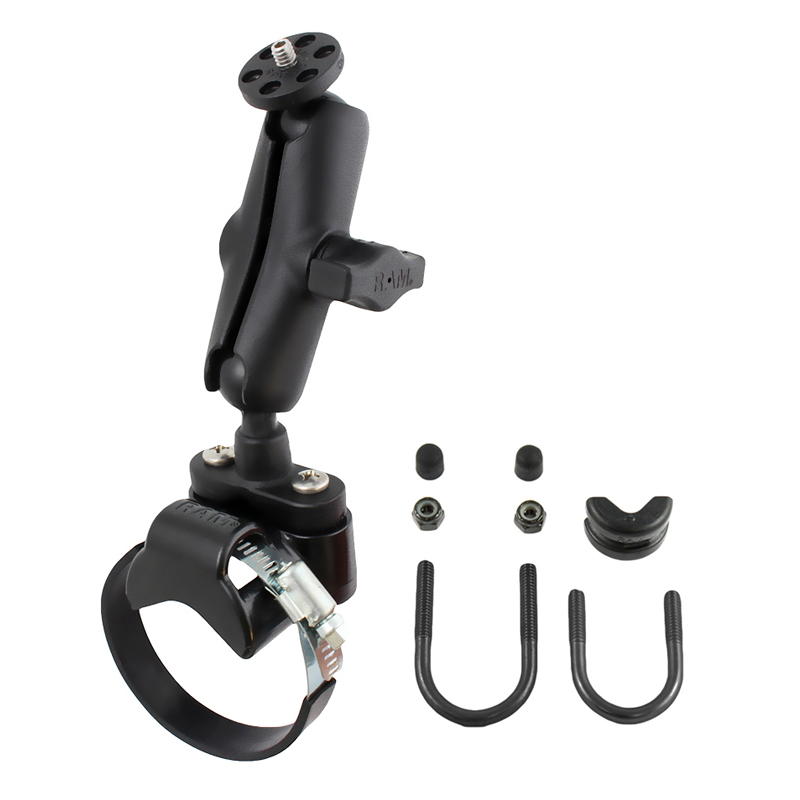

The RAM-B-231Z-2-366U consists of a steel strap base, u-bolt bases, double socket arm and 1″ ball, connected to a round plate with 1/4″-20 camera thread. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV’s using the included hardware. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The RAM-B-231Z-2-366U consists of a steel strap base, u-bolt bases, double socket arm and 1″ ball, connected to a round plate with 1/4″-20 camera thread. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV’s using the included hardware. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-231Z-2-366U
TIPO PRODOTTO: Camera Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Cameras that contain 1/4″-20 Female Threaded Hole
– Cameras that contain 1/4″-20 Female Threaded Hole
SPECIFICHE PRODOTTO
– Product Weight: 0.76 lb
– Hardware Included: (1) Strap Clamp Adapter|(2) 1/4″-20 x 1″ Machine Screws|(2) 1/4″-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6″ Rubber Strip|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: U-Bolt: .5″ – 1.25″ diameter|Strap Clamp: 1.57″ – 3.15″ diameter
– Socket To Socket Length: 3″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
– Product Weight: 0.76 lb
– Hardware Included: (1) Strap Clamp Adapter|(2) 1/4″-20 x 1″ Machine Screws|(2) 1/4″-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6″ Rubber Strip|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: U-Bolt: .5″ – 1.25″ diameter|Strap Clamp: 1.57″ – 3.15″ diameter
– Socket To Socket Length: 3″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
| Tipo Prodotto | Supporto Completo |
|---|---|
| Device | Videocamera |
| Tipo Sfera | B – 2.54cm (0.90kg) |
