RAM® Handlebar U-Bolt Double Ball Mount 1/4″-20 Threaded Stud Ram Mounts RAM-B-149Z-C1U
52,00 € Iva Inclusa
RM2065
1 disponibili (ordinabile)

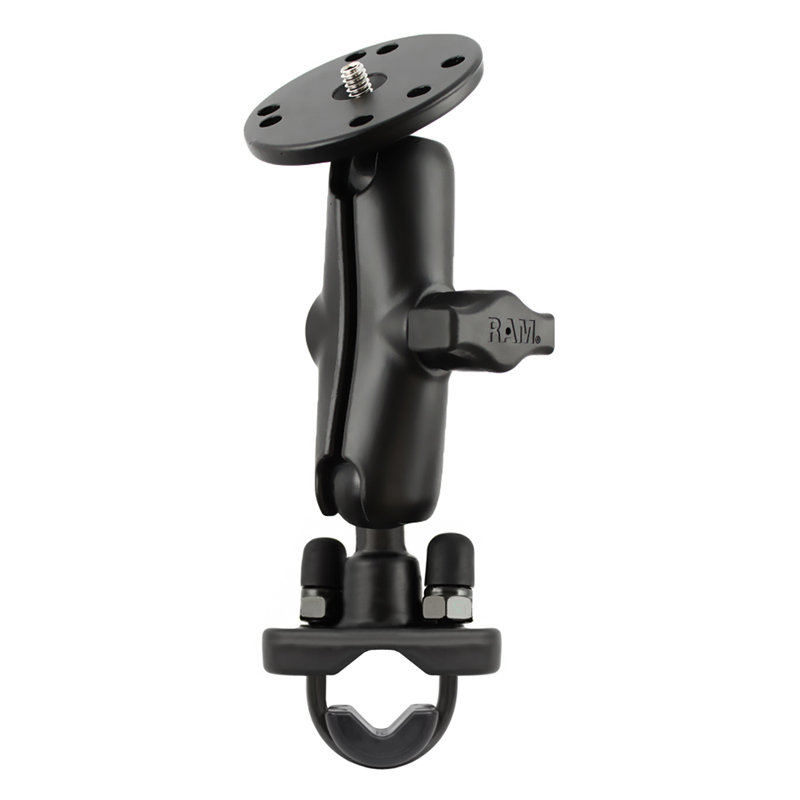

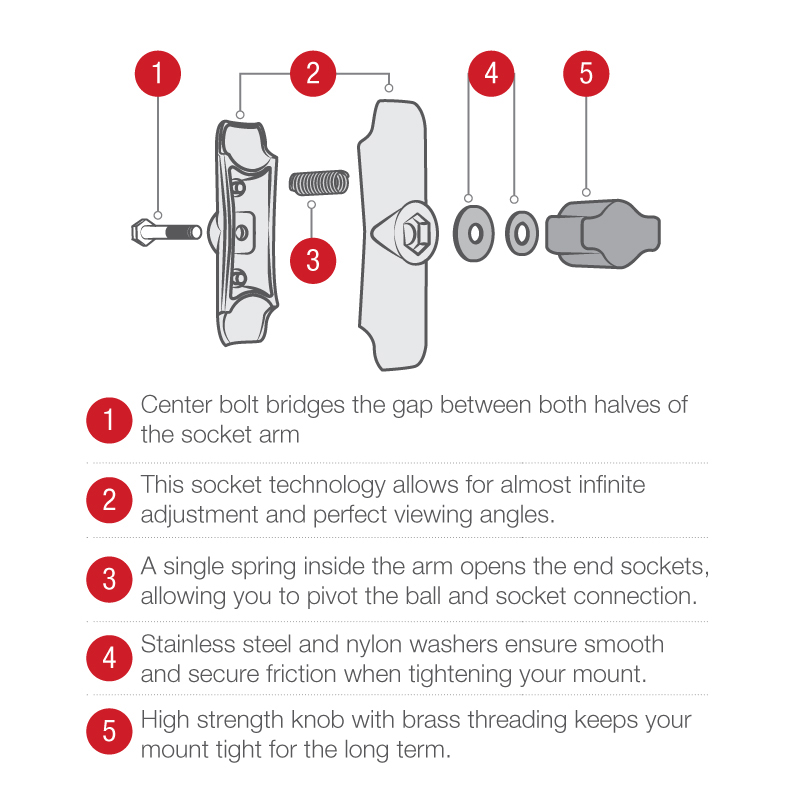

The RAM-B-149Z-C1U consists of a zinc coated u-bolt base, standard size double socket arm and universal 1/4″-20 thread, centered on a 2.5″ diameter plate. The male 1/4″ long, 1/4″-20 thread in the middle of the 2.5″ diameter plate will connect to the standard female thread found at the bottom of most still and video cameras. Included in this package is hardware that will accommodate rails from 0.50″ to 1.25″ in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-149Z-C1U
TIPO PRODOTTO: Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Cameras that contain 1/4″-20 Female Threaded Hole
– Cameras that contain 1/4″-20 Female Threaded Hole
SPECIFICHE PRODOTTO
– Product Weight: 0.67 lb
– Hardware Included: (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Thread Pitch: 1/4”-20
– Socket Arm Length: Medium Arm
– Diameter Range: .5″ – 1.25″
– Device or Accessory Type: Camera
– Vehicle Type: Motorcycle
– Vehicle Type: Bicycle
– Product Weight: 0.67 lb
– Hardware Included: (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Thread Pitch: 1/4”-20
– Socket Arm Length: Medium Arm
– Diameter Range: .5″ – 1.25″
– Device or Accessory Type: Camera
– Vehicle Type: Motorcycle
– Vehicle Type: Bicycle
| Tipo Prodotto | Supporto Completo |
|---|
